all in one

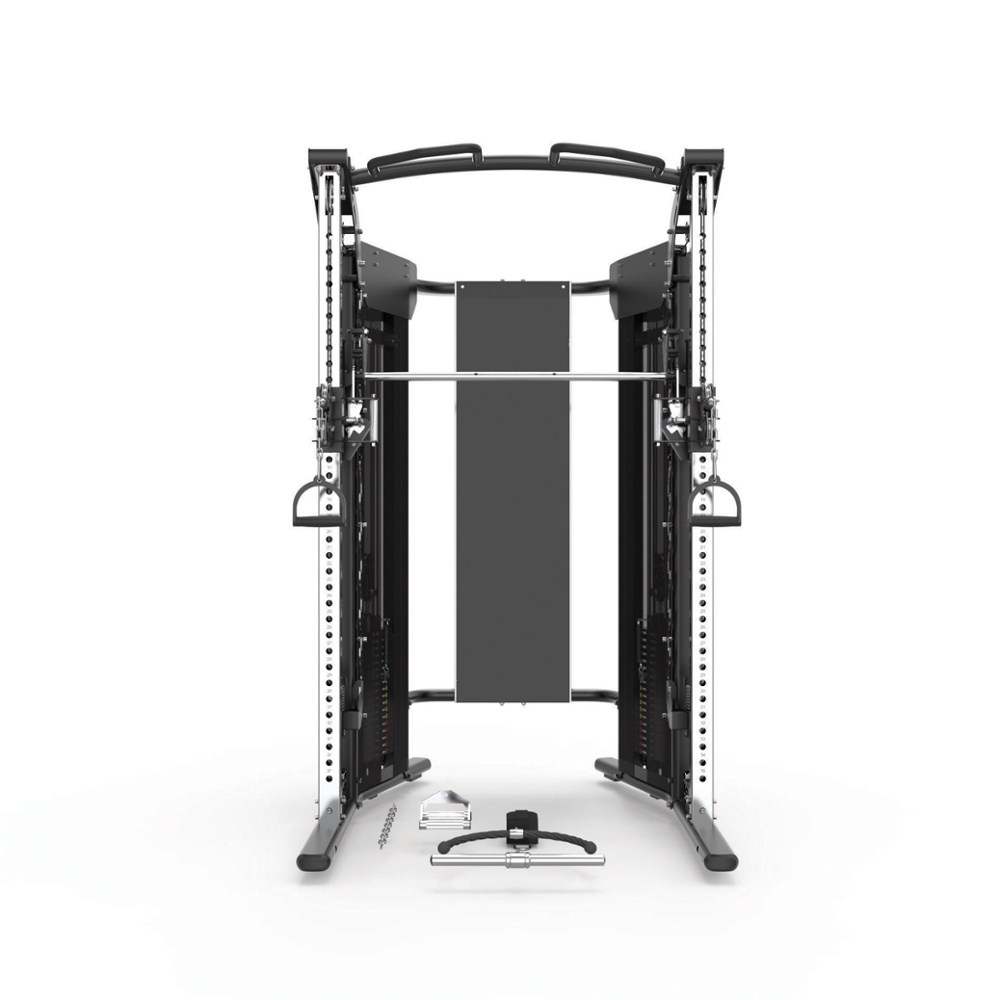

ASX-7000
NEW!

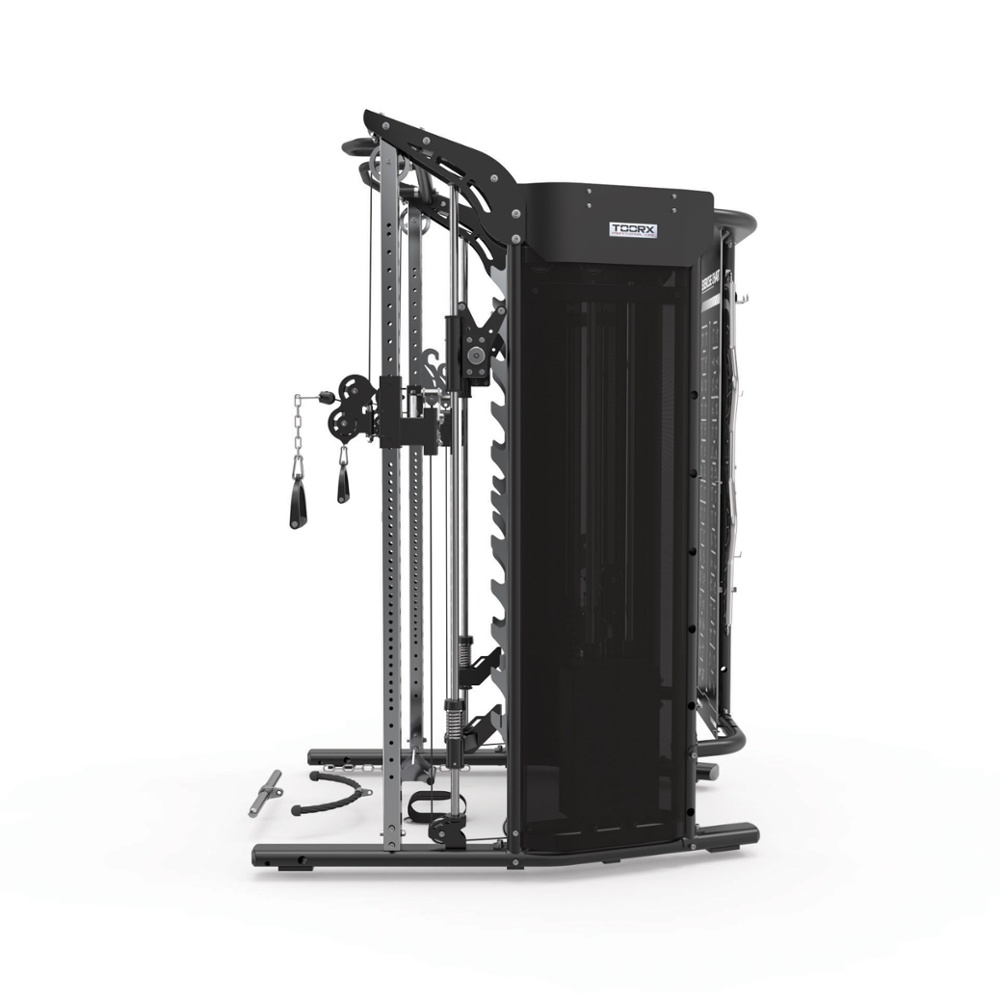

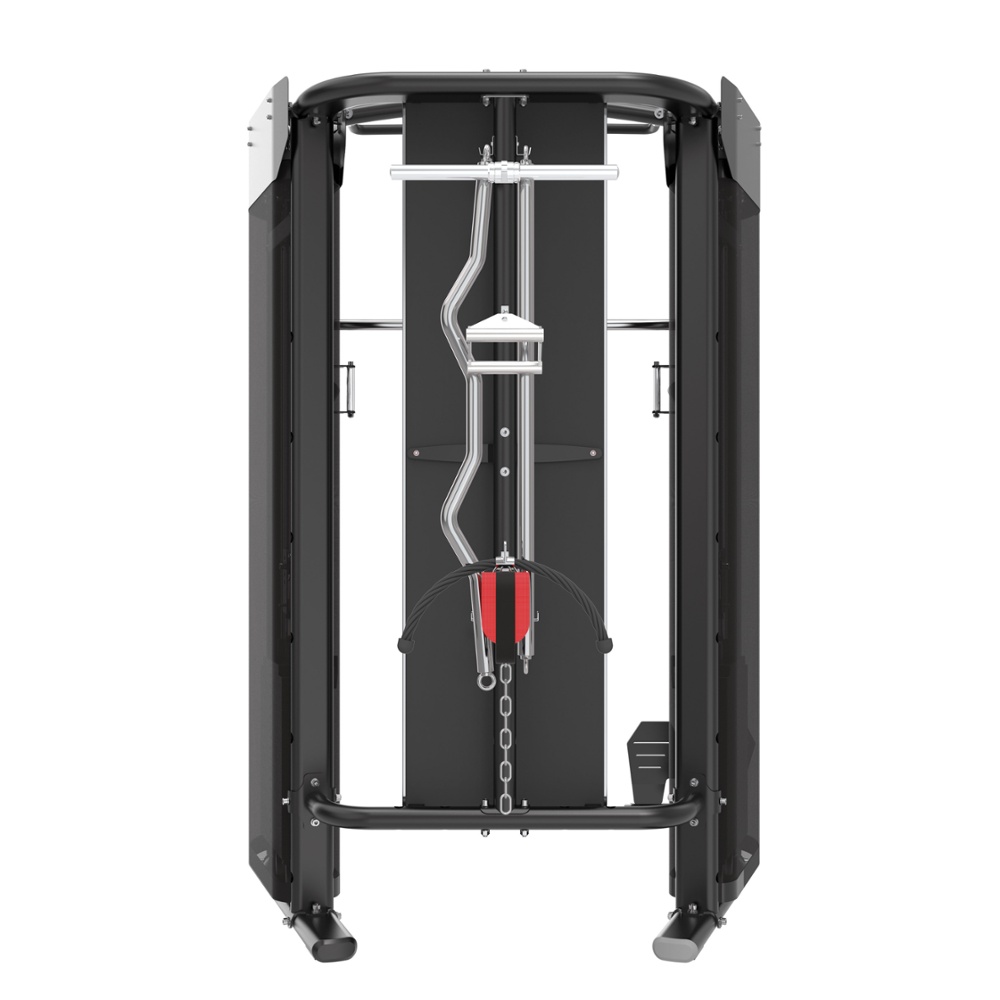

3-IN-1 dual pulley, smith machine, rack

cod. ASX-7000

  • KEY POINTS
  •  WEIGHT STACKS
    2 x 90 KG
     PULLEY
    adjustable on 50 levels (300-1875 mm) distance 25-50 mm
     MAX USER WEIGHT
    160 Kg
     BARBELL

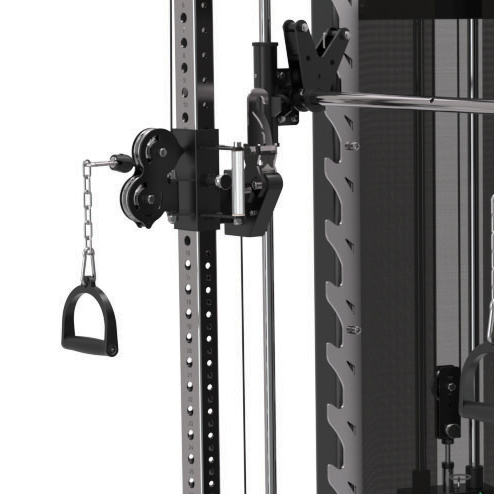

    1282 mm, linear bearings sliding, 2 safety systems with hook to avoid barbell falling, vertically adjustable on 11 levels (455-1750 mm), distance 130 mm. Weight plate holder diameter suitable for ø50 mm weight plates. Patented system to link the barbell to the weight stacks.
     EQUIPMENT
    dual pulley, smith machine, rack. Chin-up bar, 8 olympic spring clips ø49 mm. Attachments : ankle strap, rope, chain, 2 D- handles, V-bar, short straight bar, straight bar and curved bar
     RATIO
    1:2 / smith bar - 1:2 / fly handle - 1:2 / lat pull down - 1:2 / seated rowing

    ASX 7000 is a prestigious model at the top of Toorx's All in One line, undisputed leader in this market segment. In addition to boasting technical features and performance of absolute importance, in addition to the possibility of connecting the guided barbell to the weight packs and in addition to an exclusive and complete range of attachments to make it even more multifunctional, the ASX 7000 also boasts an elegant and pleasant look and a very small ground footprint, characteristics not common in the All in One category. These important advantages allow it to find its place in the most refined and sophisticated environments, even when the space available is a critical point.


The images and data in the catalogue and in the site tds may differ in some details from the originals

Technical data

Product code
Product codeASX-7000
Max user weight
Max user weight160 kg
Characteristic
Characteristic
  • Steel weight stack 2x90 kg with protective casing
  • PULLEY regolabile 300-1875 mm su 50 livelli interasse 25-50 mm
  • BARBELL 1282 mm, linear bearings sliding, 2 safety systems with hook to avoid barbell falling, vertically adjustable on 11 levels (455-1750 mm), distance 130 mm. Weight plate holder diameter suitable for ø50 mm weight plates. Patented system to link the barbell to the weight stacks.
  • EQUIPMENT 3-IN-1 dual pulley, smith machine, rack. Chin-up bar, 8 olympic spring clips ø49 mm.
  • ATTACHMENTS: ankle strap, rope, chain, 2 D- handles, V-bar, short straight bar, straight bar and curved bar

OPTIONAL

  • COD. LEG-PRESSASX
    Vertical leg press
  • COD. M-BARASX
    Multifunctional bar
  • COD. MLIFTASX-4.5-6
    Monolift
  • COD. LAT-SEATASX-4.5-6
    Lat seat
  • COD. W-HOLDERASX
    Weight plates holder
  • COD. LPDASX-4.5-6
    Lat pull down

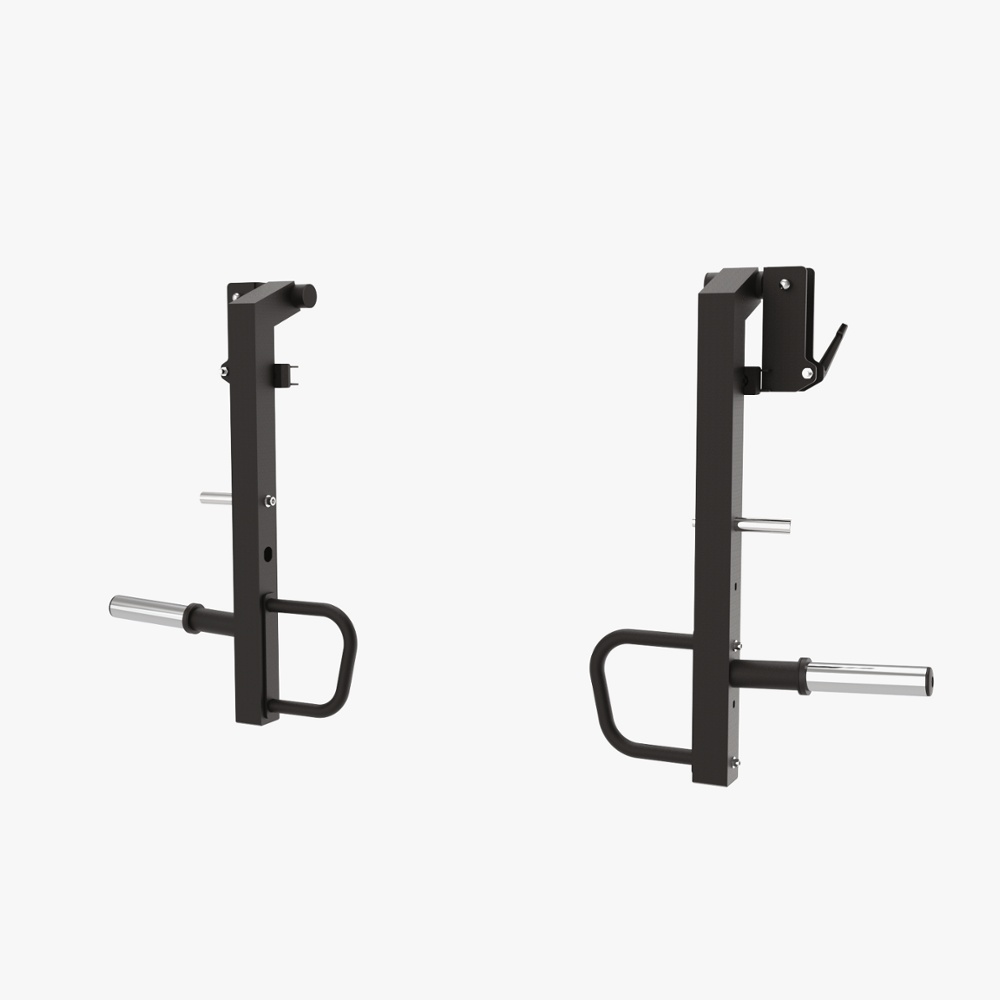

  • COD. J-ARMSASX6000
    Jammer arms

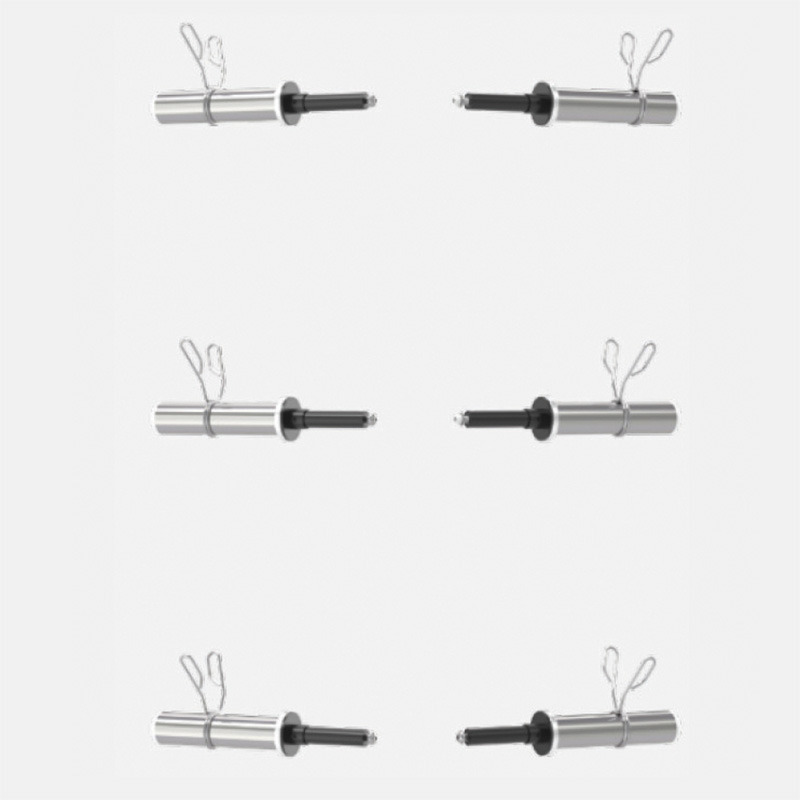

  • COD. W-HOLDERASX-7
    6 pcs weight plates holders
  • COD. D-HANDLEASX-7
    Dip handle

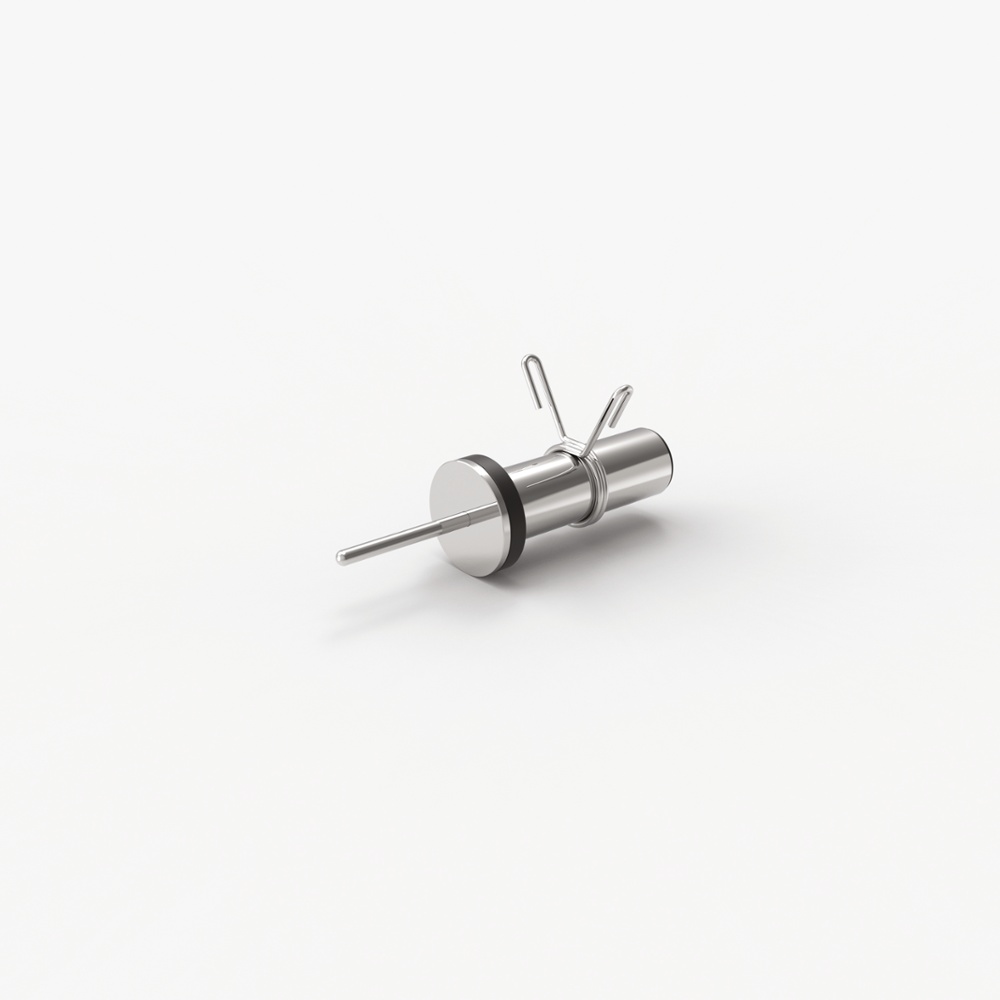

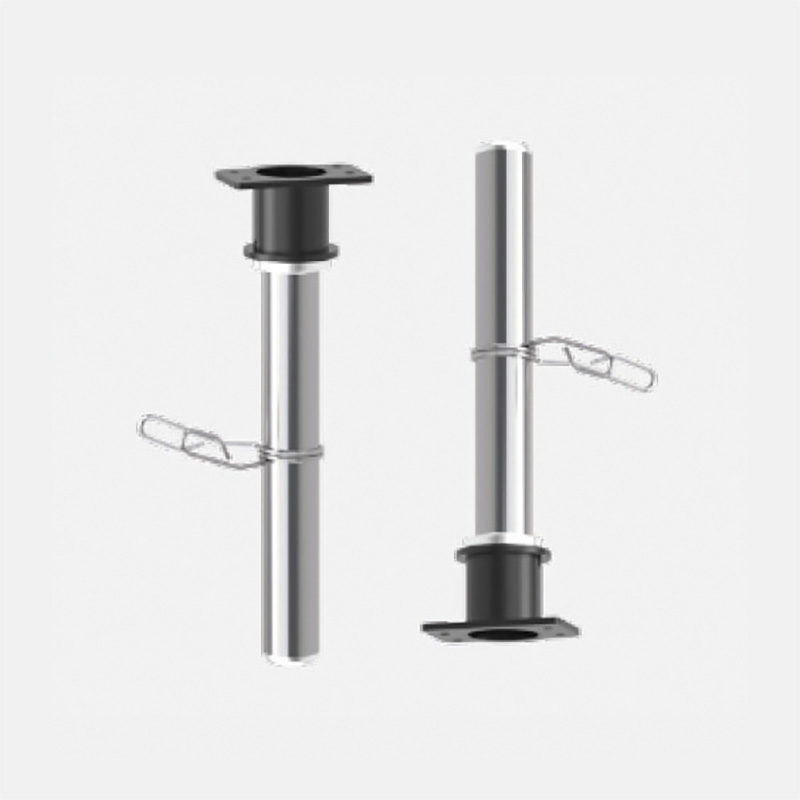

  • COD. W-HOLDER-SMASX-7
    Set of 2 weight plates holders for smith bar

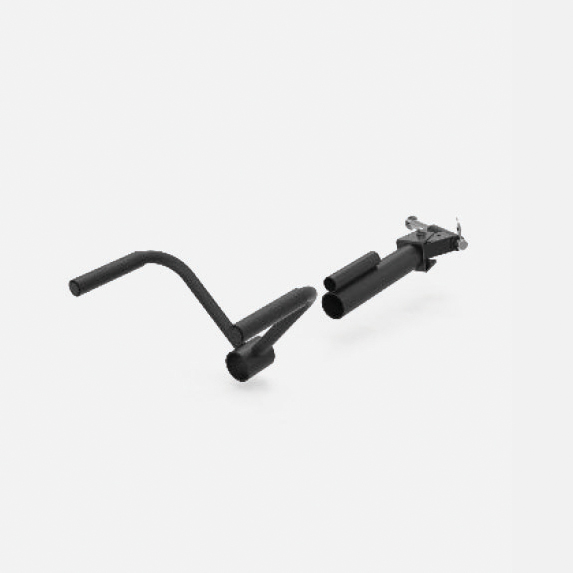

  • COD. LMASX-7
    Landmine

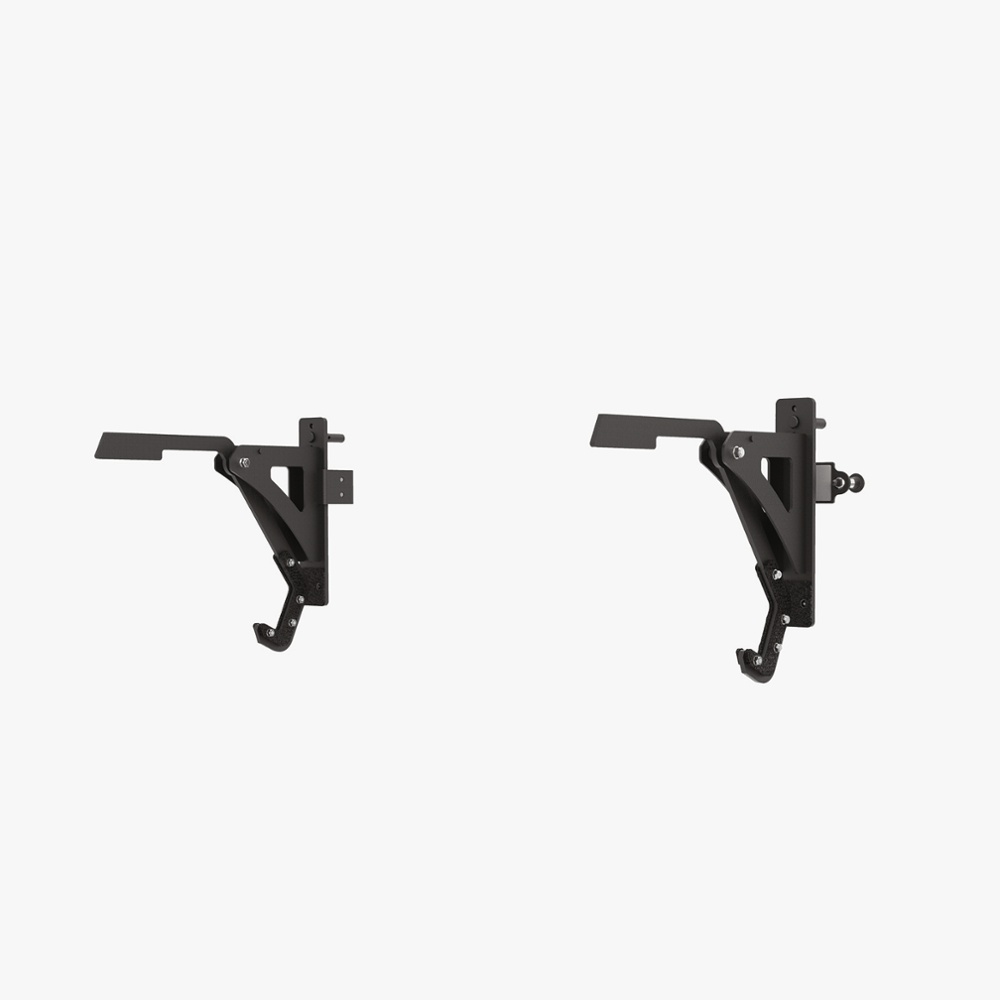

  • COD. SB-FSASX-7
    J-cups and safety spotter arms

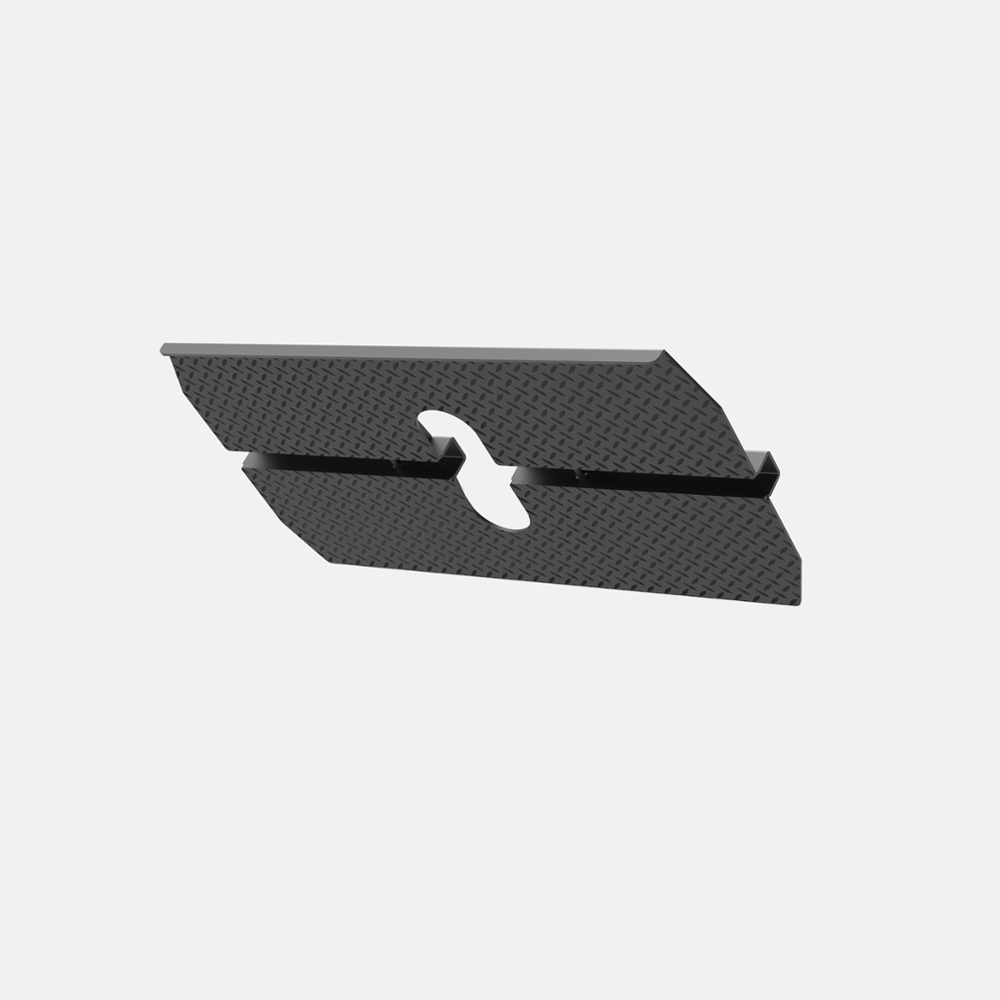

  • COD. LR-FOOTPLATEASX-7
    Low row foot plate
Frame
FrameStructure section rectangular tubing 50x70 mm - thickness 2,5 and oval 50x100 – thickness 2,5 mm
Weight
Weight382.8 kg
Set up size
Set up size1320 x 1520 x 2180 mm
Compliances
CompliancesEN20957-1 / EN957-2 class S
