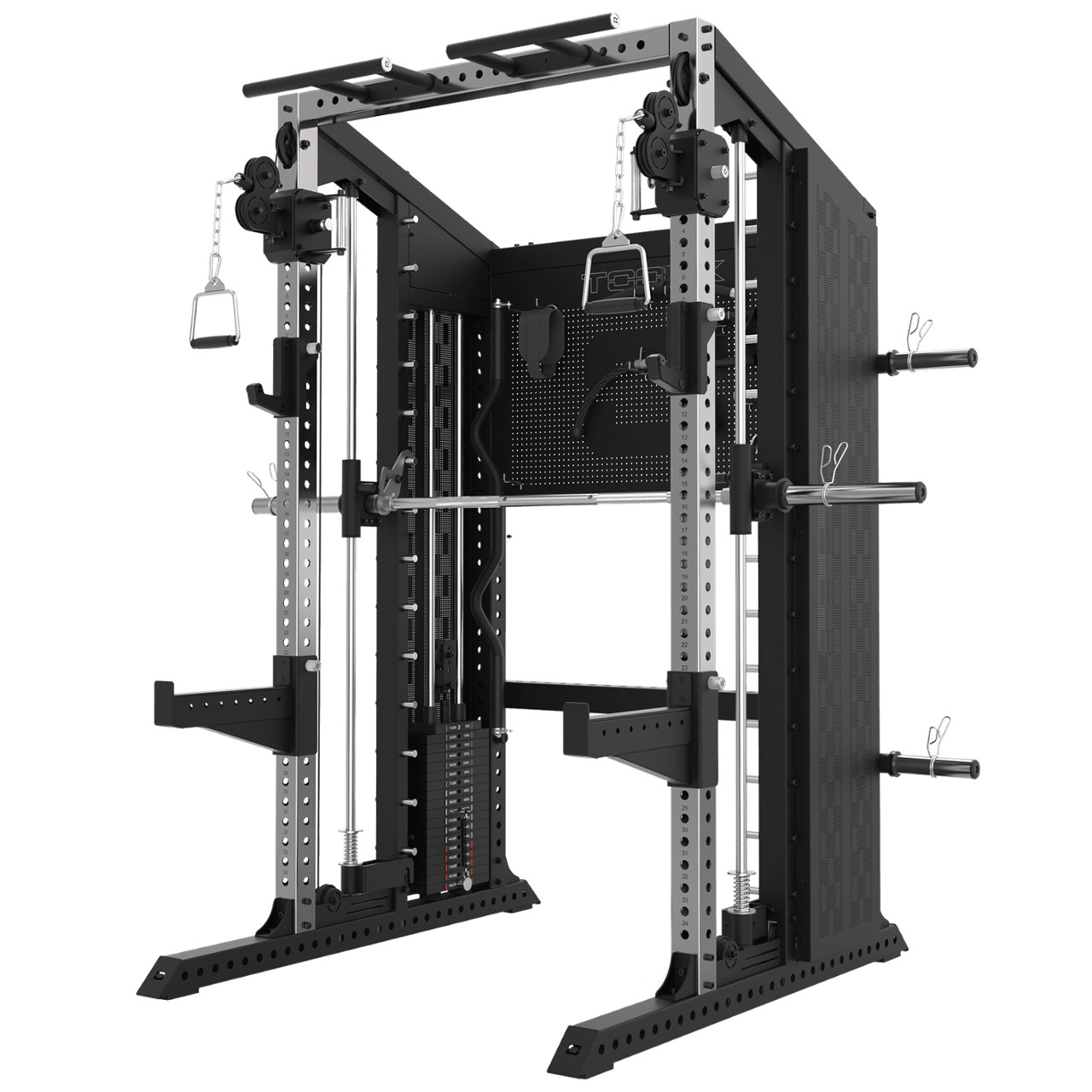

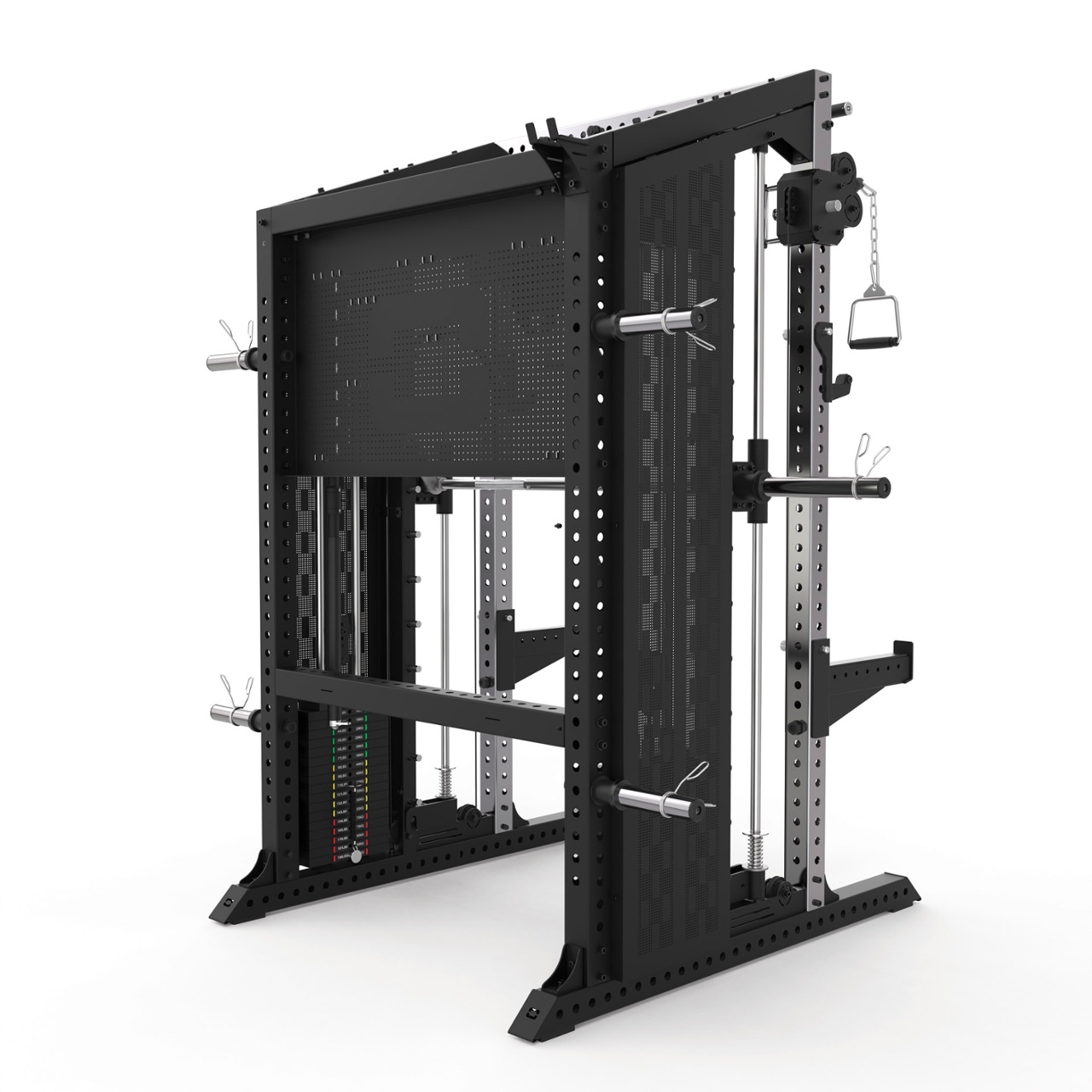

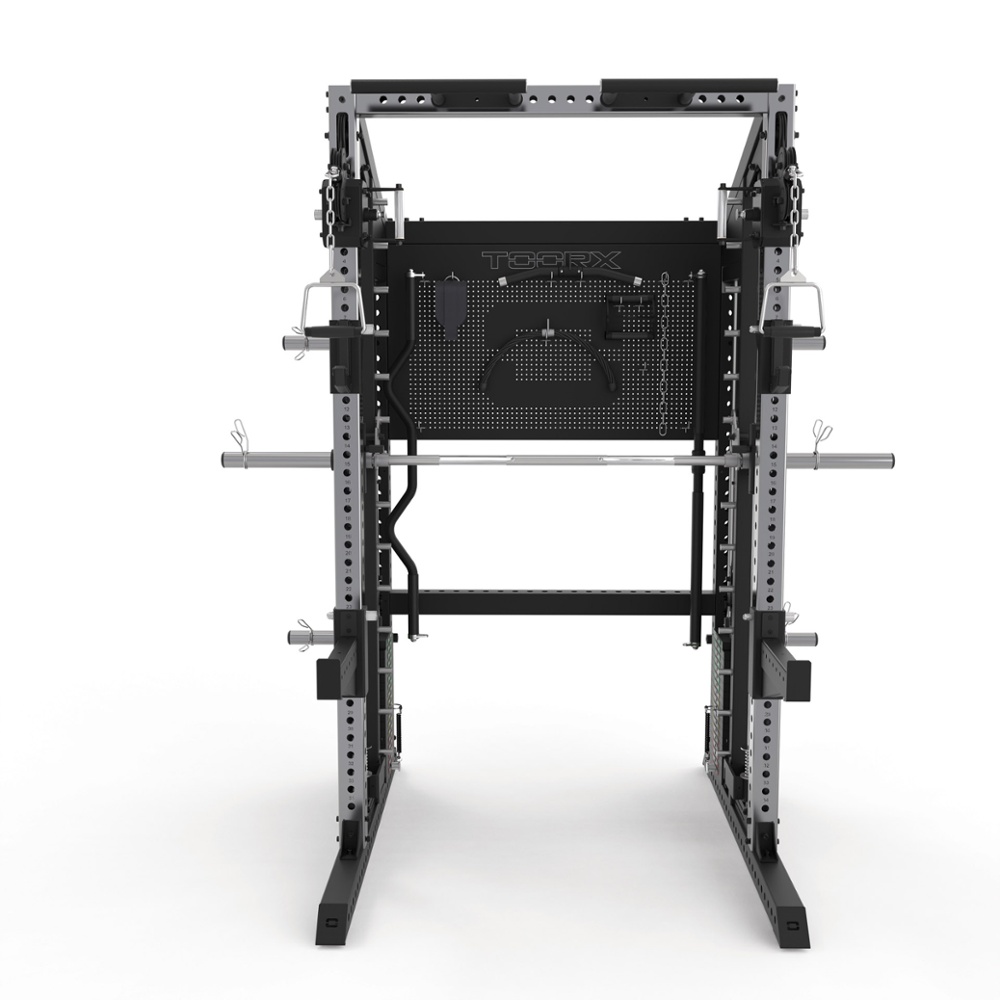

all in one: ASX-8000; NEW!

3-IN-1 dual pulley, smith machine, rack; cod. ASX-8000

KEY POINTS
PULLEYS
adjustable on 31 levels (312-1862 mm),distance 50mm

MAX USER WEIGHT
160 Kg

RATIO
1:1 / smith bar - 2:1 / dual pulley - 2:1 / lat pull down

BARBELL
1996mm, ultra smooth linear bearing for smith bar guliding, 2 safety systems with hook to avoid barbell falling, vertically adjustable on 11 levels (537-1837mm) , distance 130 mm, Lowest height 407 mm from ground up (on safety hooks). Weight plate holder diameter suitable for ø50 mm weight plates

EQUIPMENT

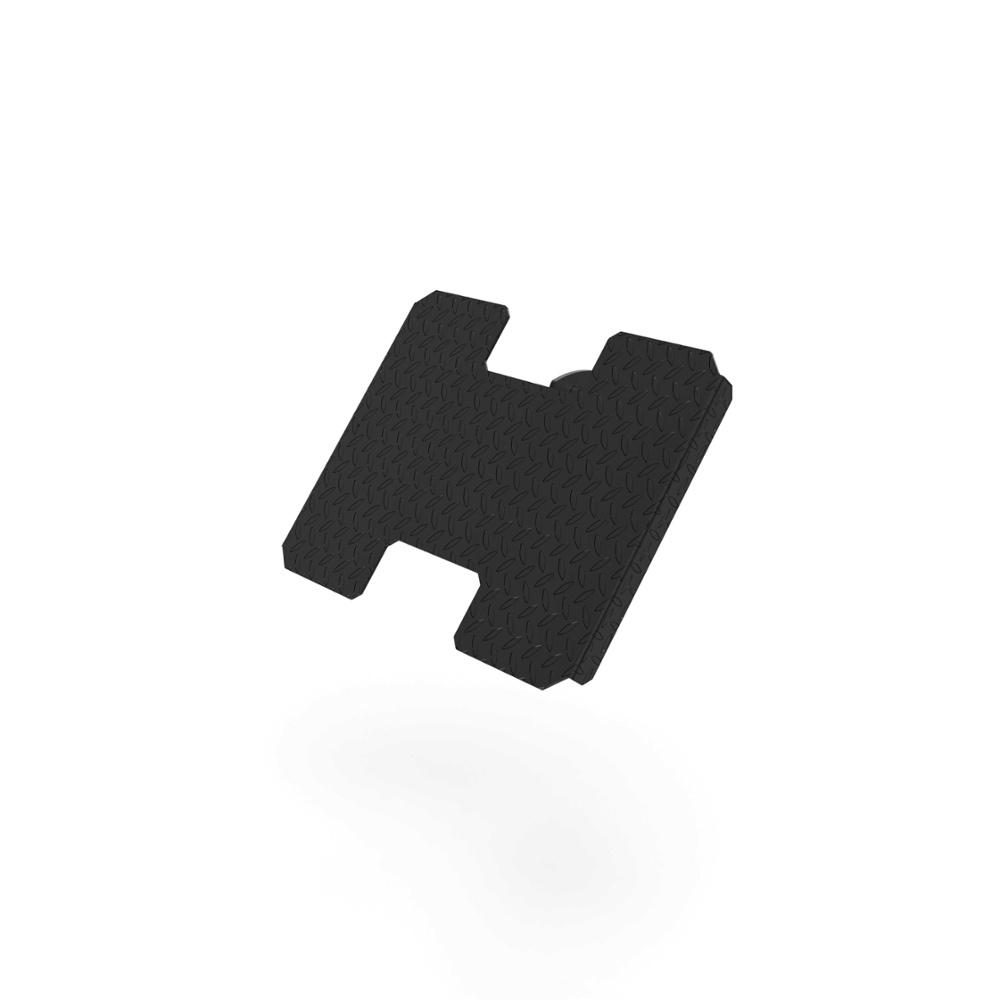

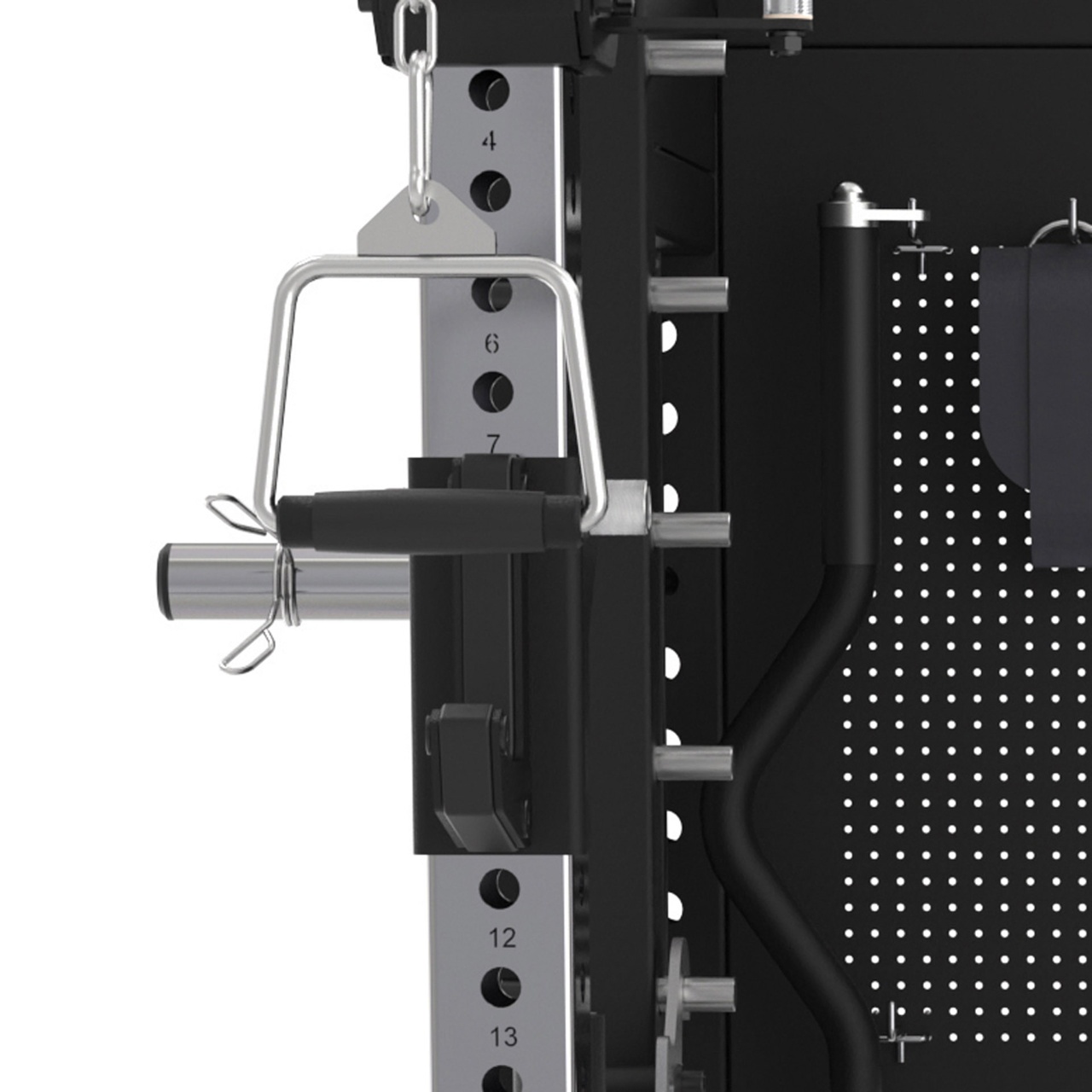

ultra smooth plastic pulley, 2 J-hooks, 2 safety spotter arms, multi-grip chin-up bar, barbell storage, 4 weight plates holders for ø50 mm plates, 6 olympic spring clip ø49 mm. Attachments: ankle strap, tricep rope, chain, 2 Y- handles, V-bar, short straight bar, straight bar and curved bar, non-slip metal footplate(option)

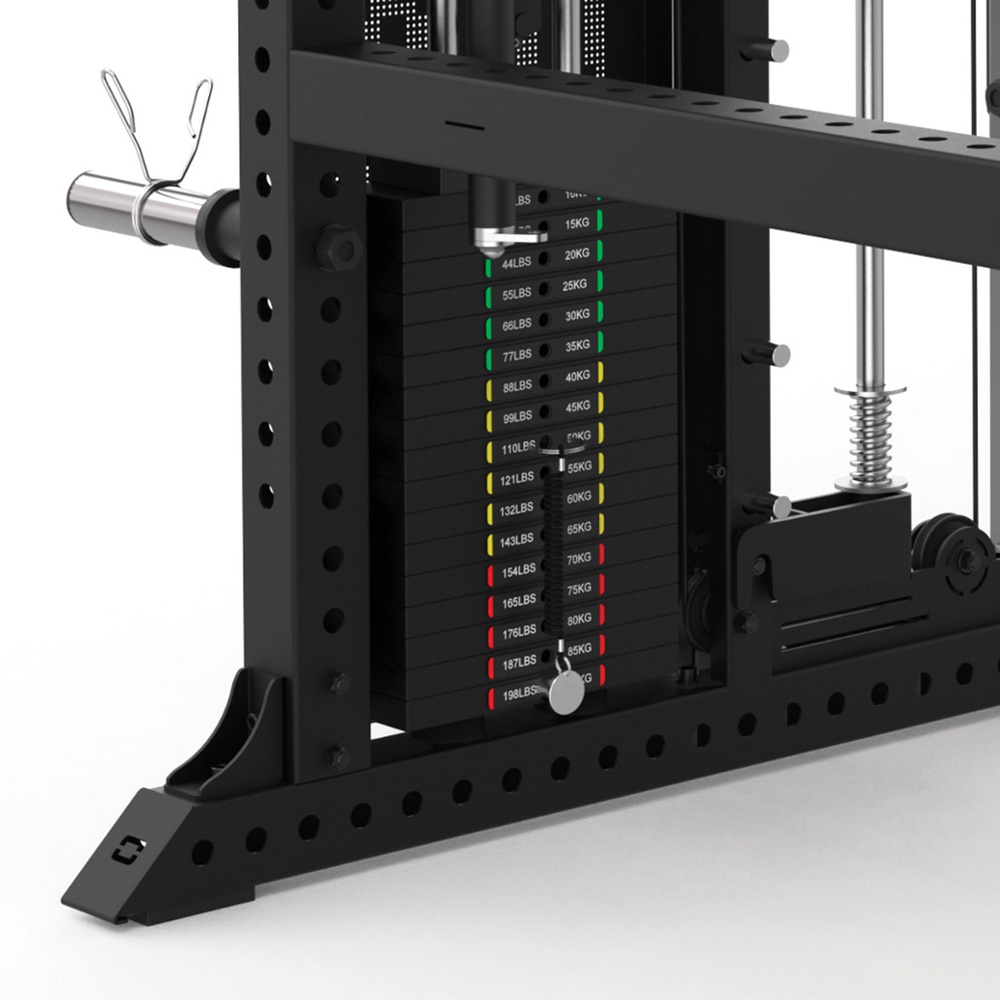

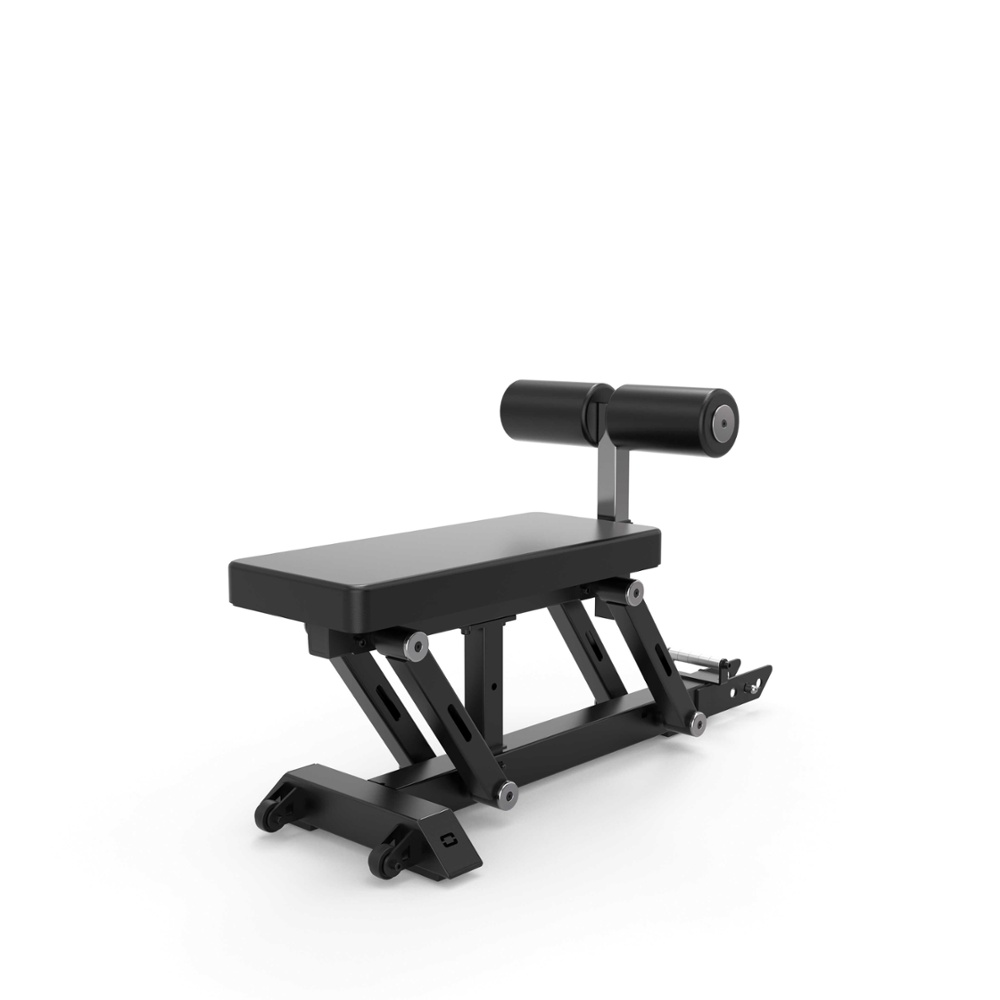

ASX8000 “all in one” station positioned at the top of the Toorx range, suitable for particularly heavy-duty use in full commercial, ASX 8000 encompasses in a single station the functions of three separate machines, namely: a) Dual Pulley (equipped with 2 weight packs of 90 kg. each) b) Smith machine c) Rack functional equipped with barbell supports, safety supports and truss for the tractions In addition to being equipped with numerous accessories as standard, this exclusive all-in-one can be equipped with numerous extremely interesting optional attachments, among which it is worth mentioning those that allow the functions of lat machine and pulley, with special dual function bench, guaranteeing unparalleled completeness of use, together with unparalleled space saving and flexibility.

The images and data in the catalogue and in the site tds may differ in some details from the originals

COMPARE

Technical data

Product code
Product code	ASX-8000
Max user weight
Max user weight	160 kg
Characteristic

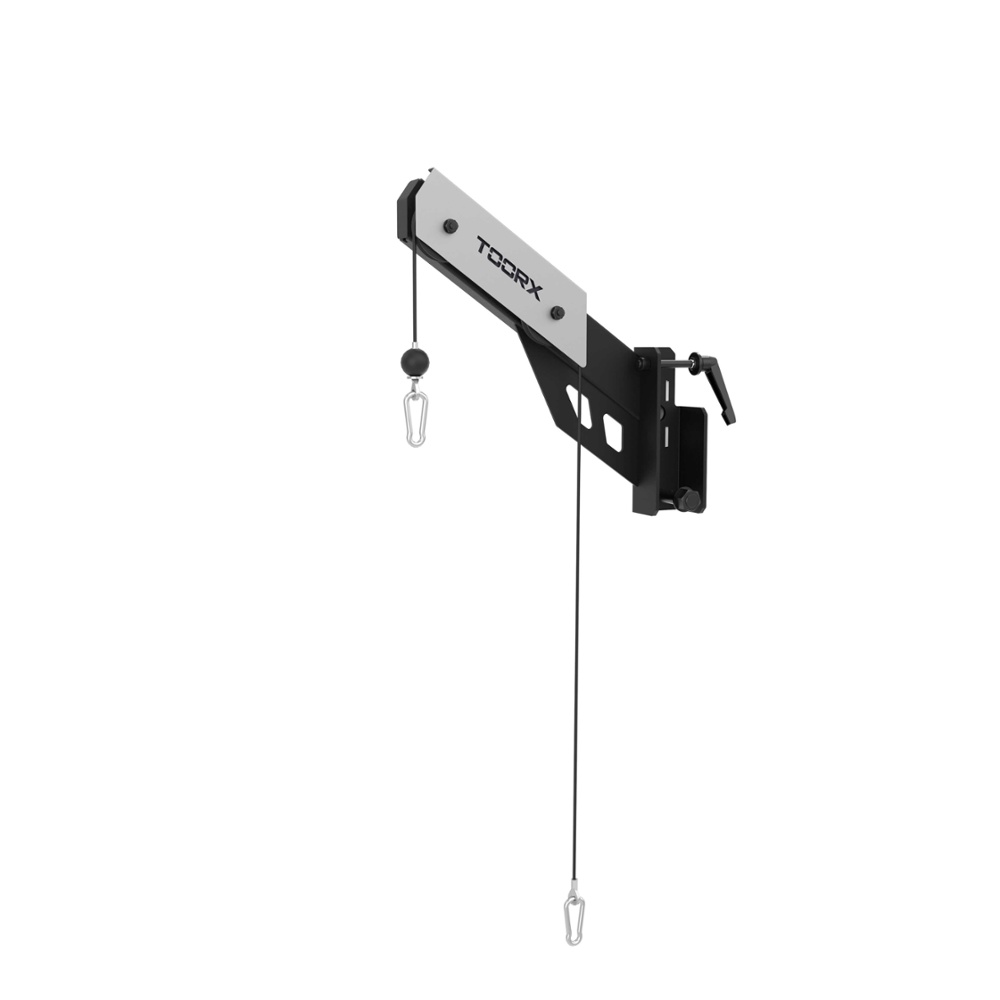

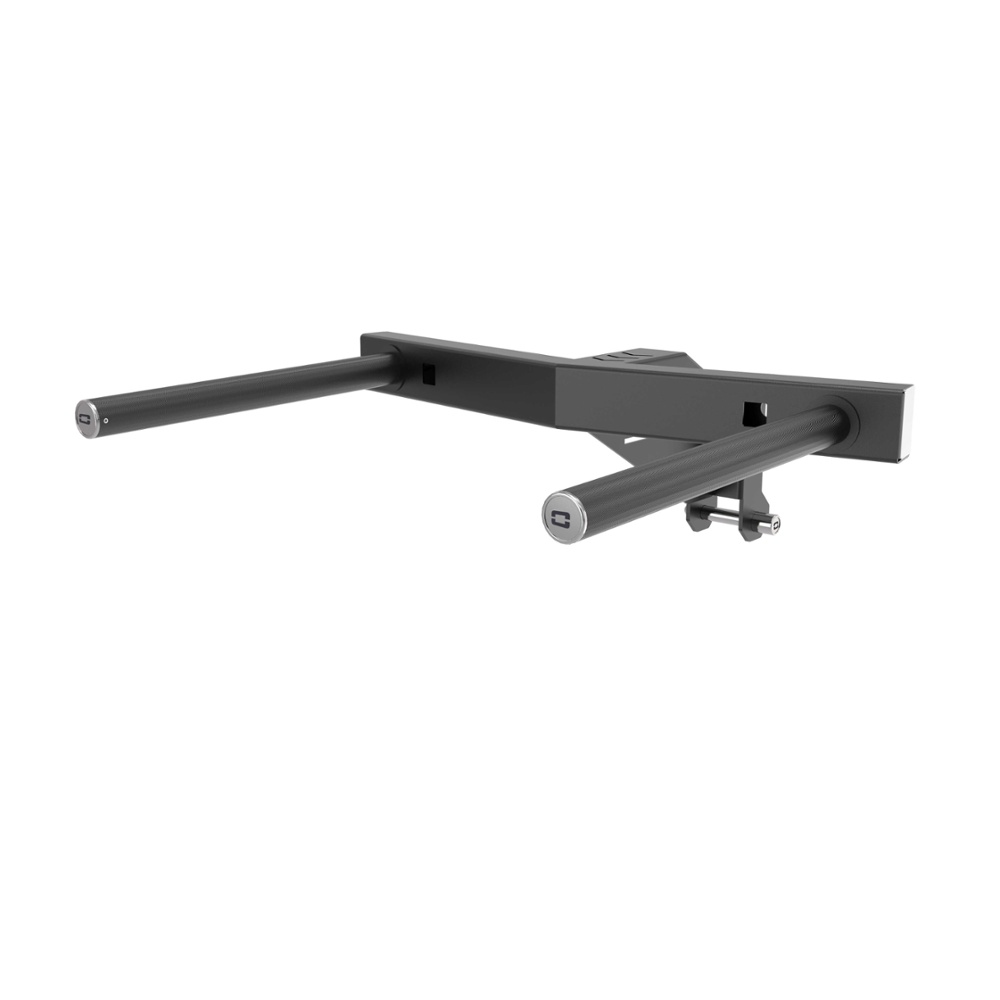

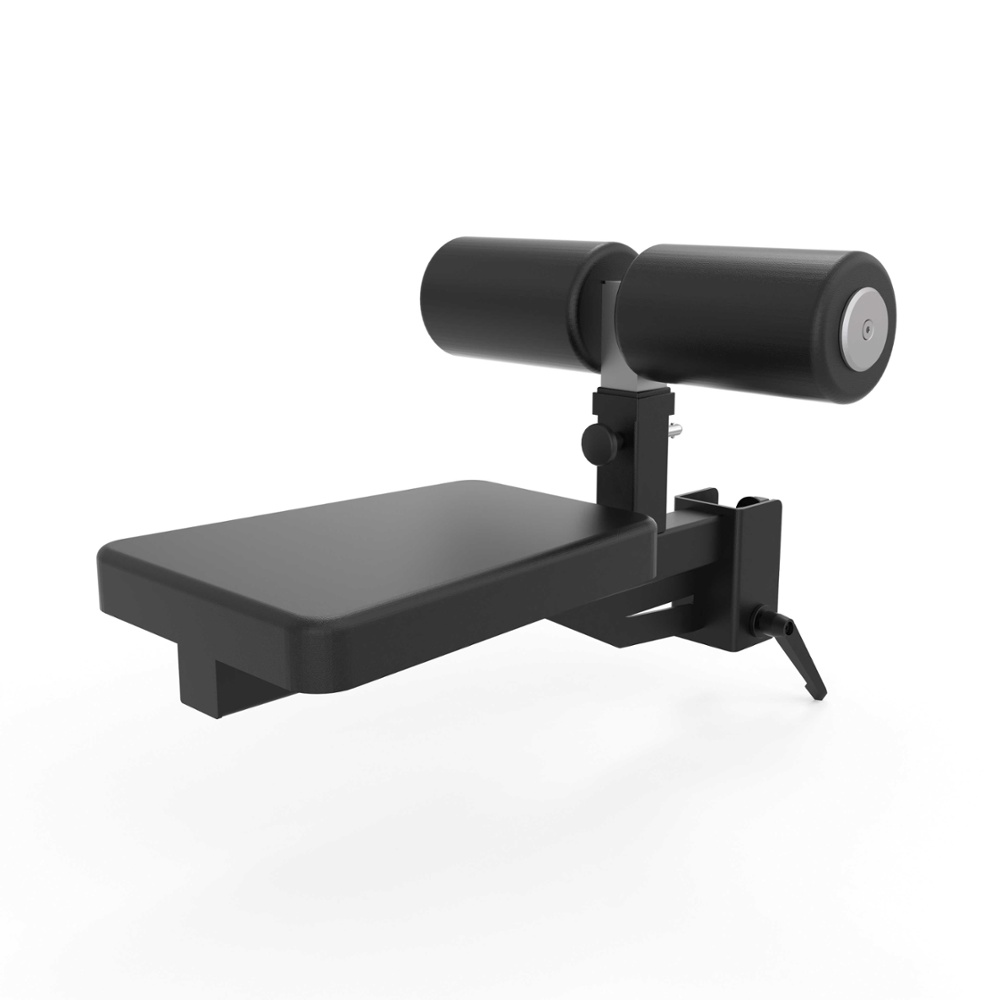

Characteristic	WEIGHT STACK 2 x 90 kg steel weight stack PULLEY adjustable on 31 levels (312-1862 mm),distance 50mm BARBELL 1996mm, ultra smooth linear bearing for smith bar guliding, 2 safety systems with hook to avoid barbell falling, vertically adjustable on 11 levels (537- 1837mm) , distance 130 mm, Lowest height 407 mm from ground up (on safety hooks). Weight plate holder diameter suitable for ø50 mm weight plates. EQUIPMENT ultra smooth plastic pulley, 2 J-hooks, 2 safety spotter arms, multi-grip chin-up bar, barbell storage, 4 weight plates holders for ø50 mm plates, 6 olympic spring clip ø49 mm. ATTACHMENTS: ankle strap, tricep rope, chain, 2 Y- handles, V-bar, short straight bar, straight bar and curved bar, non-slip metal footplate (option) OPTIONAL COD. D-HANDLEASX8-WLX38 Dip handle COD. LR-FOOTPLATEASX-8 Low row foot plate COD. LPDASX-8 Lat pull down COD. LAT-SEATASX8 Lat seat COD. LMPBASX-8 Lat machine/pulley seat
Frame
Frame	Structure section square tube 75x75 mm - thickness 3 mm
Weight
Weight	470 kg
Set up size
Set up size	1514 x 1996 x 2200 mm
Compliances
Compliances	EN20957-1 / EN957-2 class S
EAN
EAN	8029975810393
