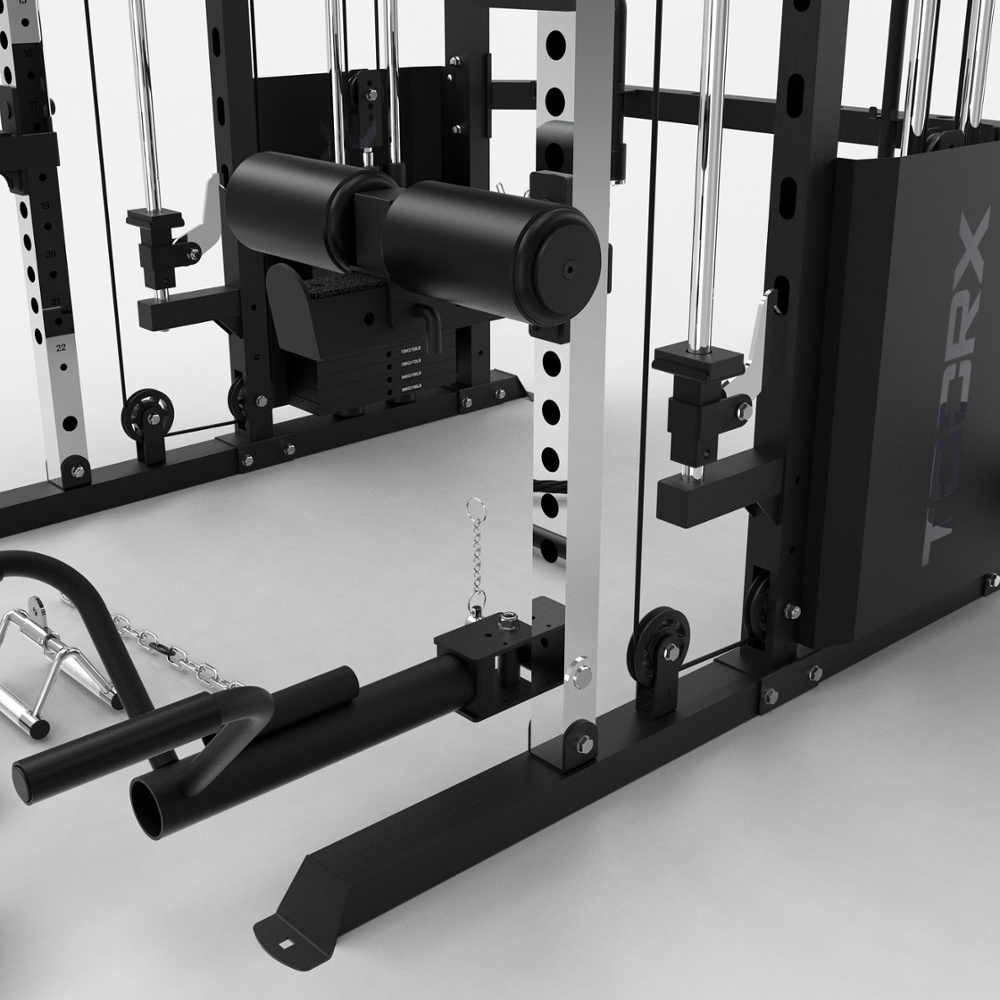

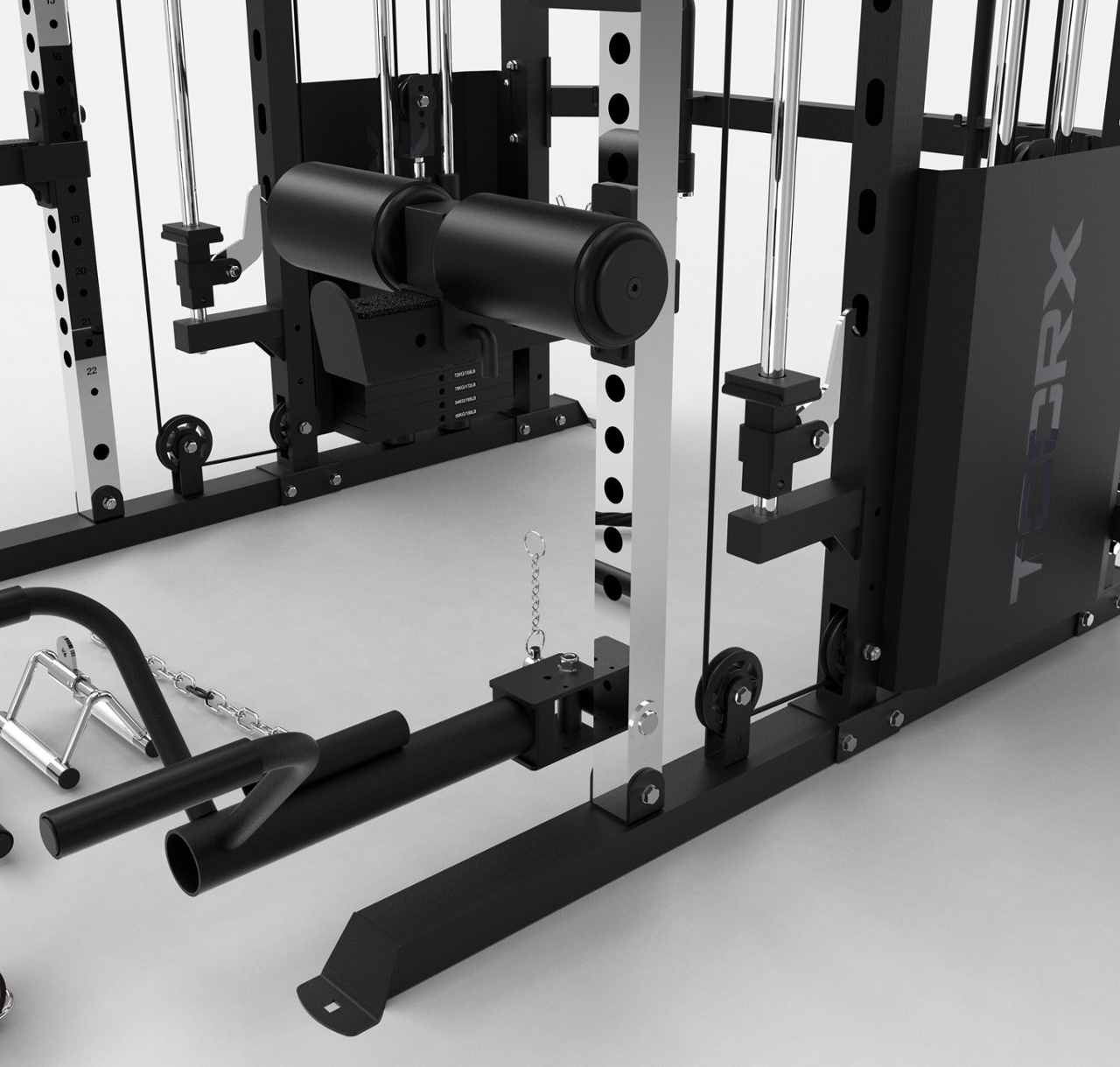

all in one: ASX-4000; 3-IN-1 dual pulley, smith machine, rack; cod. ASX-4000

KEY POINTS
ALL IN ONE dual pulley, smith machine, rack.

WEIGHT STACKS
2 x 90 KG

MAX USER WEIGHT
150 Kg

BARBELL
1936 mm, linear bearings sliding, 2 safety systems with hook to avoid barbell falling, vertically adjustable on 12 levels (622 - 1832 mm) , distance 110 mm. Weight plate holder diameter suitable for ø50 mm weight plates.

EQUIPMENT
3-IN-1 dual pulley, smith machine, rack. 2 J-hooks, 2 safety spotter arms with 1 set leg holder foam, chin-up bar, dip up bar, barbell storage, 6 weight plates holders for ø50 mm plates, 8 olympic spring clips ø49 mm. Attachments : ankle strap, rope, landmine, 2 adjustable Y- handles, V-bar, short straight bar, straight bar and curved bar.

J-CUP/SAFETY SPOTTER ARMS
Extra strong - 5 mm thickness with UHMW
(Ultra High Molecular Weight) protection pads, adjustable on 31 levels (314-1814 mm) distance 50 mm

The images and data in the catalogue and in the site tds may differ in some details from the originals

COMPARE

Technical data

Product code
Product code	ASX-4000
Max user weight
Max user weight	150 kg
Characteristic
Characteristic	RATIO: 1:2 / fly handle - 1:2 / lat pull down - 1:2 / seated rowing Steel weight stack 2x90 kg with protective casing PULLEY adjustable on 22 levels (264-1839 mm) distance 75 mm J-CUP/SAFETY SPOTTER ARMS Extra strong - 5 mm thickness with UHMW (Ultra High Molecular Weight) protection pads, adjustable on 31 levels (314-1814 mm) distance 50 mm BARBELL 1936 mm, linear bearings sliding, 2 safety systems with hook to avoid barbell falling, vertically adjustable on 12 levels (622 - 1832 mm) , distance 110 mm. Weight plate holder diameter suitable for ø50 mm weight plates. EQUIPMENT 3-IN-1 dual pulley, smith machine, rack. 2 J-hooks, 2 safety spotter arms with 1 set leg holder foam, chin-up bar, dip up bar, barbell storage, 6 weight plates holders for ø50 mm plates, 8 olympic spring clips ø49 mm. Attachments : ankle strap, rope, landmine OPTIONAL COD. LEG-PRESSASX Leg press for ASX-4000 and ASX-5000 COD. J-ARMSASX2-4-5 Jammer arms COD. LAT-SEATASX2-4-5 Lat seat COD. W-HOLDERASX Weight plates holder COD. M-BARASX Multifunctional bar COD. LPDASX2-4-5 Lat pull down
Frame
Frame	Structure section rectangular tubing 50x70 mm - thickness 2,5 mm/2 mm and square tubing 50x50 mm - thickness 3 mm
Weight
Weight	369.5 Kg
Set up size
Set up size	1516 × 1938 × 2167 mm
Gross weight
Gross weight	388.5 Kg
Packing size
Packing size	A:2120x430x155 B:1560x465x220 C:1270x550x190 D:720x550x140 E:375x240x125 F:375x240x125 G:375x240x125 H:375x240x125 I : Ø92x1935
Compliances
Compliances	CE EN ISO 20957-1/957-4
EAN
EAN	8029975805863
