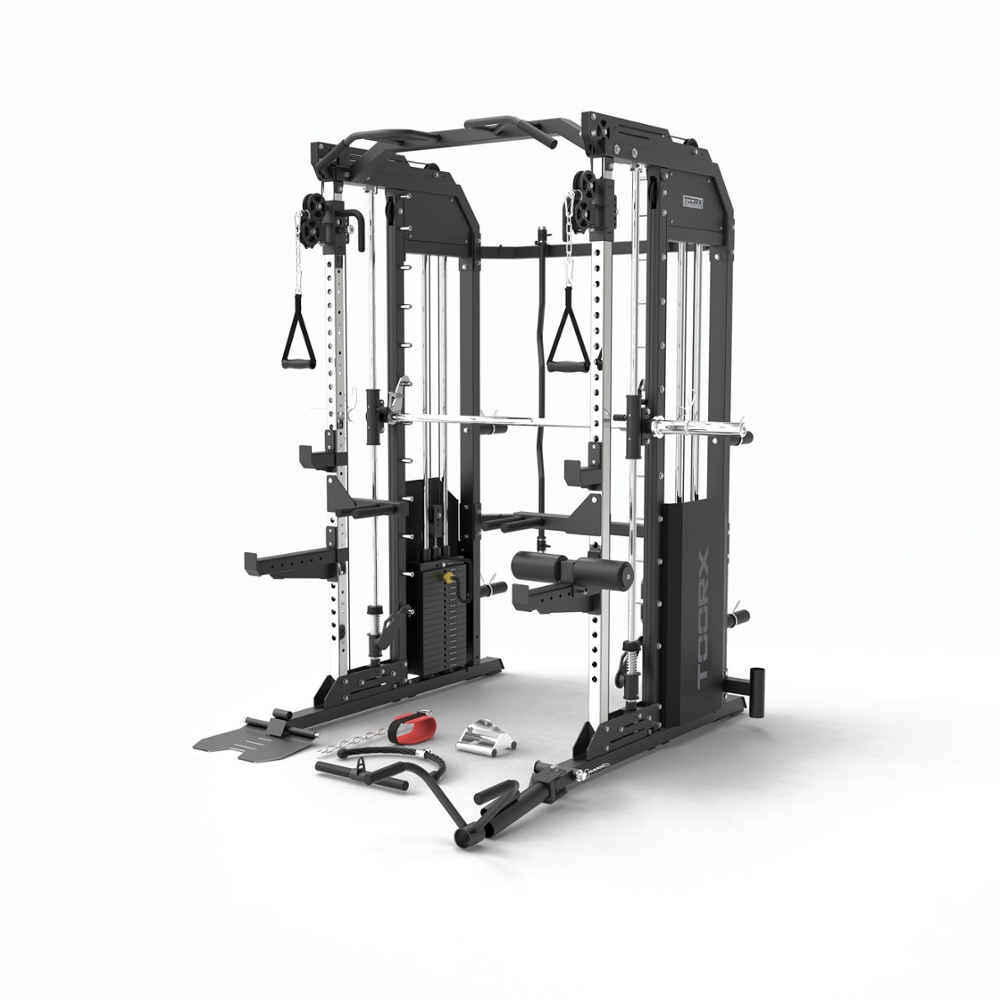

all in one: ASX-5000; 3-IN-1 dual pulley, smith machine, rack; cod. ASX-5000

KEY POINTS
ALL IN ONE dual pulley, smith machine, rack.

WEIGHT STACKS
2 x 90 KG

MAX USER WEIGHT
135 Kg

BARBELL

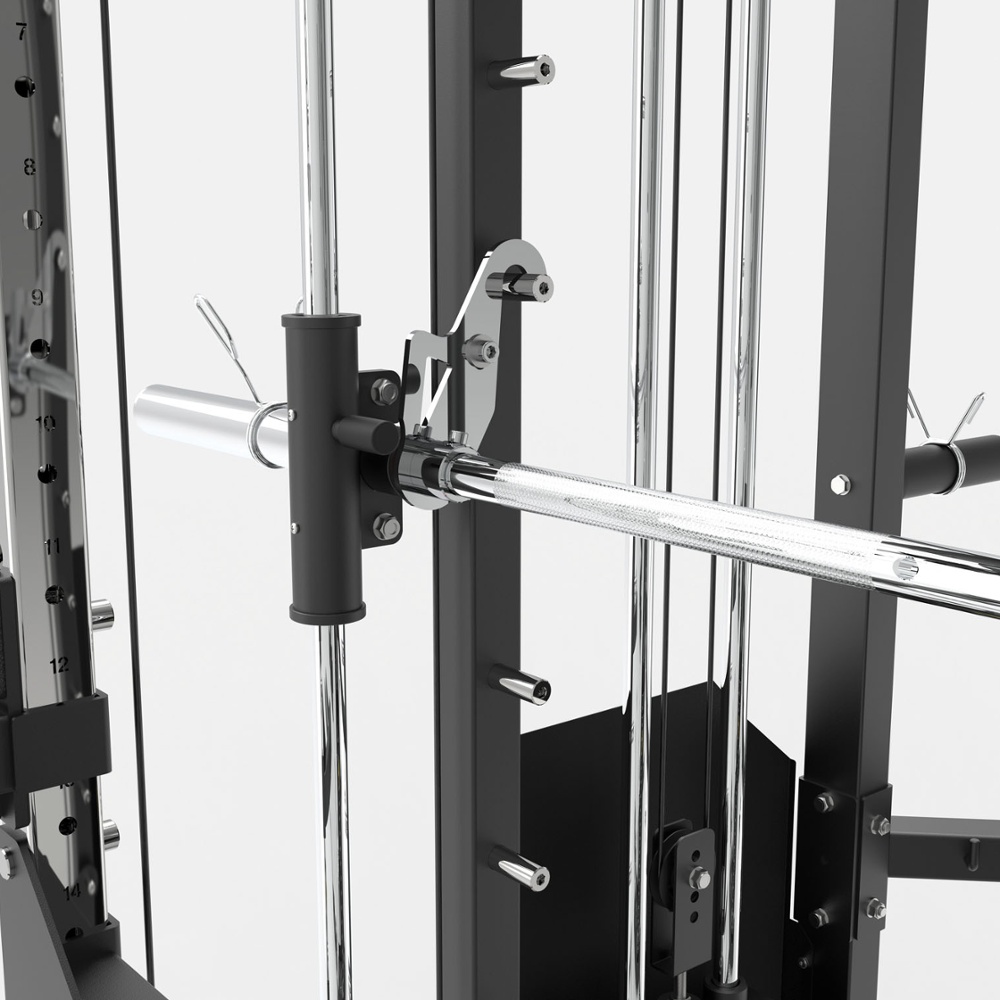

1944mm, linear bearings sliding, 2 safety systems with hook to avoid barbell falling, vertically adjustable on 11 levels (539 - 1861 mm) , distance 150 mm. Weight plate holder diameter suitable for ø50 mm weight plates. Patented system to link the barbell to the weight stacks.

EQUIPMENT

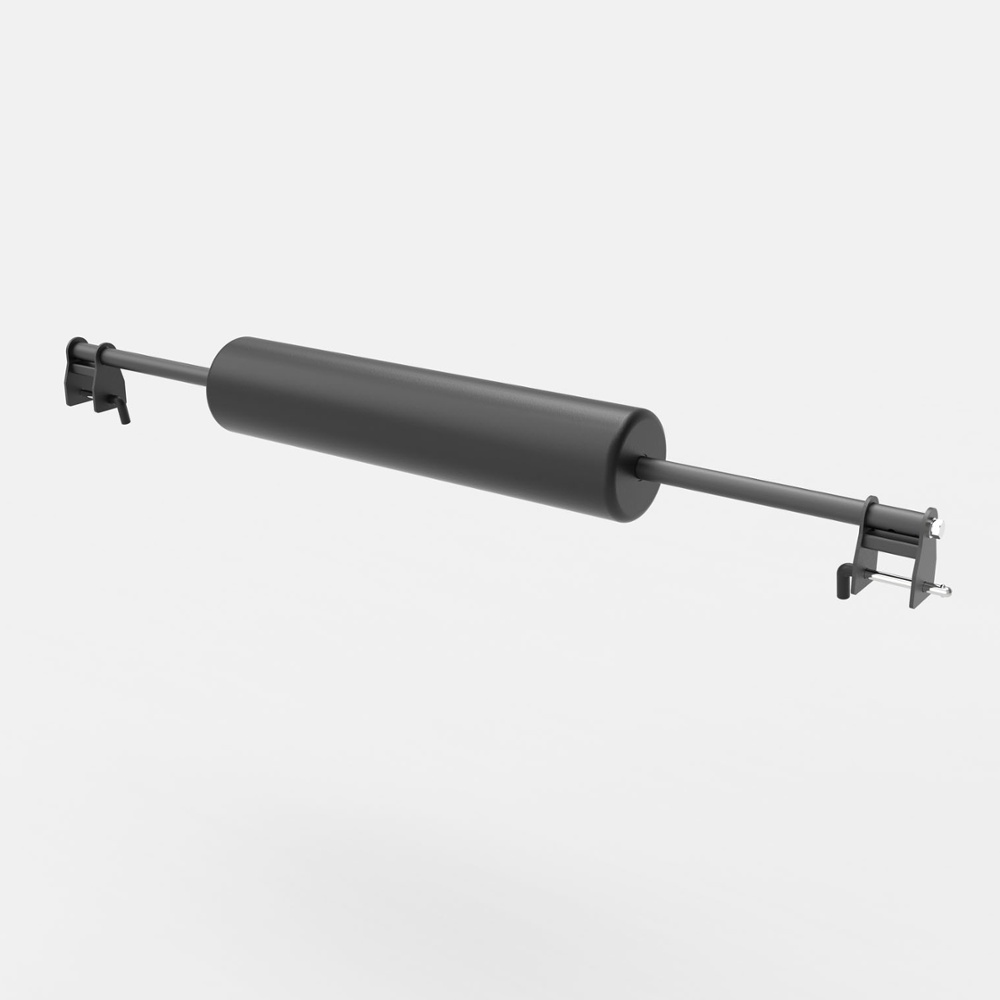

3-IN-1 dual pulley, smith machine, rack. 2 J-hooks, 2 safety spotter arms with 1 set leg holder foam, multi-grip chin-up bar, dip up bar, barbell storage, 4 weight plates holders for ø50 mm plates, 4 olympic spring clips ø49 mm, 2 spring clips ø47 mm. Attachments : ankle strap, rope, chain, landmine, 2 Y- han-dles with adjustable chain, V-bar, short straight bar, straight bar and curved bar, non-slip metal footplate.

J-CUP/SAFETY SPOTTER ARMS
Extra strong - 5 mm thickness with UHMW(Ultra High Molecular Weight) protection pads, adjustable on 31 levels (316-1816 mm) distance 50 mm

The images and data in the catalogue and in the site tds may differ in some details from the originals

COMPARE

Technical data

Product code
Product code	ASX-5000
Max user weight
Max user weight	135 kg
Use
Use	PROFESSIONALE
Characteristic

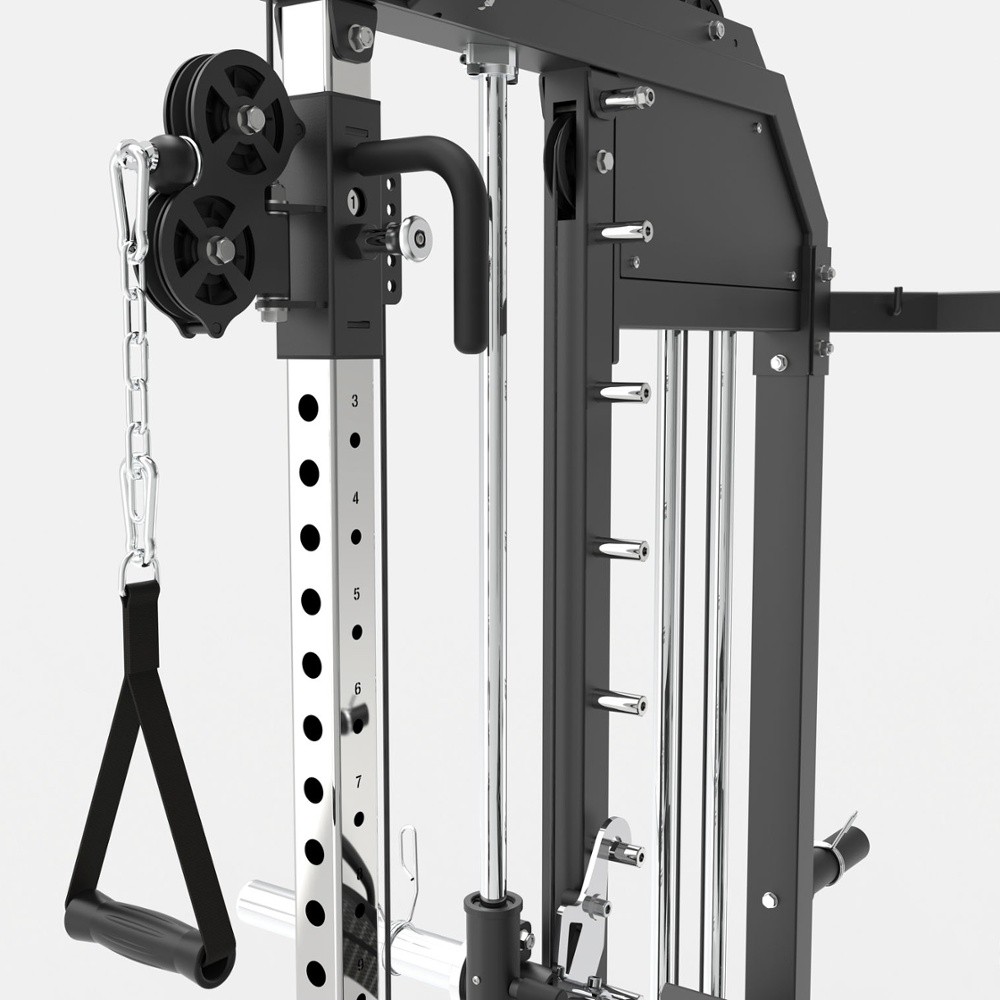

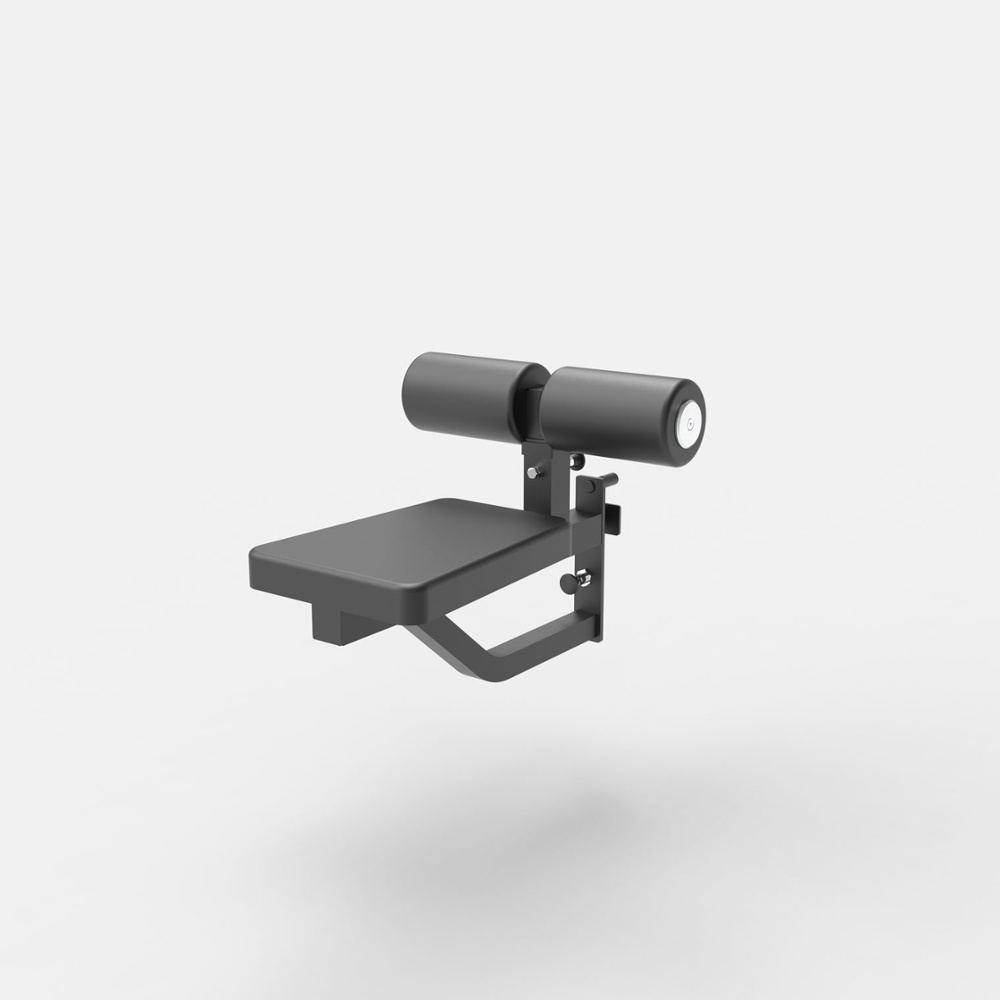

Characteristic	RATIO: 1:1 / smith bar - 1:2 / fly handle - 1:2 / lat pull down - 1:2 / seated rowing Steel weight stack 2x90 kg with protective casing PULLEY adjustable on 22 levels (266x1841 mm) distance 75 mm J-CUP/SAFETY SPOTTER ARMS Extra strong - 5 mm thickness with UHMW(Ultra High Molecular Weight) protection pads, adjustable on 31 levels (316-1816 mm) distance 50 mm BARBELL 1944mm, linear bearings sliding, 2 safety systems with hook to avoid barbell falling, vertically adjustable on 11 levels (539 - 1861 mm) , distance 150 mm. Weight plate holder diameter suitable for ø50 mm weight plates. Patented system to link the barbell to the weight stacks. EQUIPMENT 3-IN-1 dual pulley, smith machine, rack. 2 J-hooks, 2 safety spotter arms with 1 set leg holder foam, multi-grip chin-up bar, dip up bar, barbell storage, 4 weight plates holders for ø50 mm plates, 4 olympic spring clips ø49 mm, 2 spring clips ø47 mm. Attachments : ankle strap, rope, chain, landmine, 2 Y- han-dles with adjustable chain, V-bar, short straight bar, straight bar and curved bar, non-slip metal footplate. OPTIONAL COD. J-ARMSASX5000 Jammer arms for ASX-5000 COD. LAT-SEATASX5000 Lat seat for ASX-5000 COD. LEG-PRESS4-5 Leg press for ASX-4000 and ASX-5000 COD. W-HOLDERASX5000 Weight plates holder for ASX-5000 COD. M-BARASX5000 Multifunctional bar for ASX-5000
Frame
Frame	rectangular tubing 50x70 mm - thickness 2,5 mm/2 mm and square tubing 50x50 mm - thickness 2 mm
Weight
Weight	391.5 Kg
Set up size
Set up size	1944 x 1670 x 2170 mm
Gross weight
Gross weight	410.5 Kg
Packing size
Packing size	A：2090x275x170 B：1470x300x140 C：1420x385x240 D：1120x415x185 E：925x515x100 F：540x545x215 G: 92x2100 H：340x205x135 I：340x205x135 J：340x205x135 K：340x180x135 L：340x180x135 M：340x180x135 N：340x180x135 O：340x180x135
Compliances
Compliances	EN20957-1 / EN957-2 / EN957-4 classe S
EAN
EAN	8029975805870
