all in one: ASX-4500; 3-IN-1 dual pulley, smith machine, rack; cod. ASX-4500

KEY POINTS
ALL IN ONE dual pulley, smith machine, rack.

WEIGHT STACKS
2 x 90 KG

MAX USER WEIGHT
135 Kg

BARBELL
2037 mm, linear bearings sliding, 2 safety systems with hook to avoid barbell falling, vertically adjustable on 11 levels (353-1822 mm), distance 130 mm. Weight plate holder diameter suitable for ø50 mm weight plates

EQUIPMENT

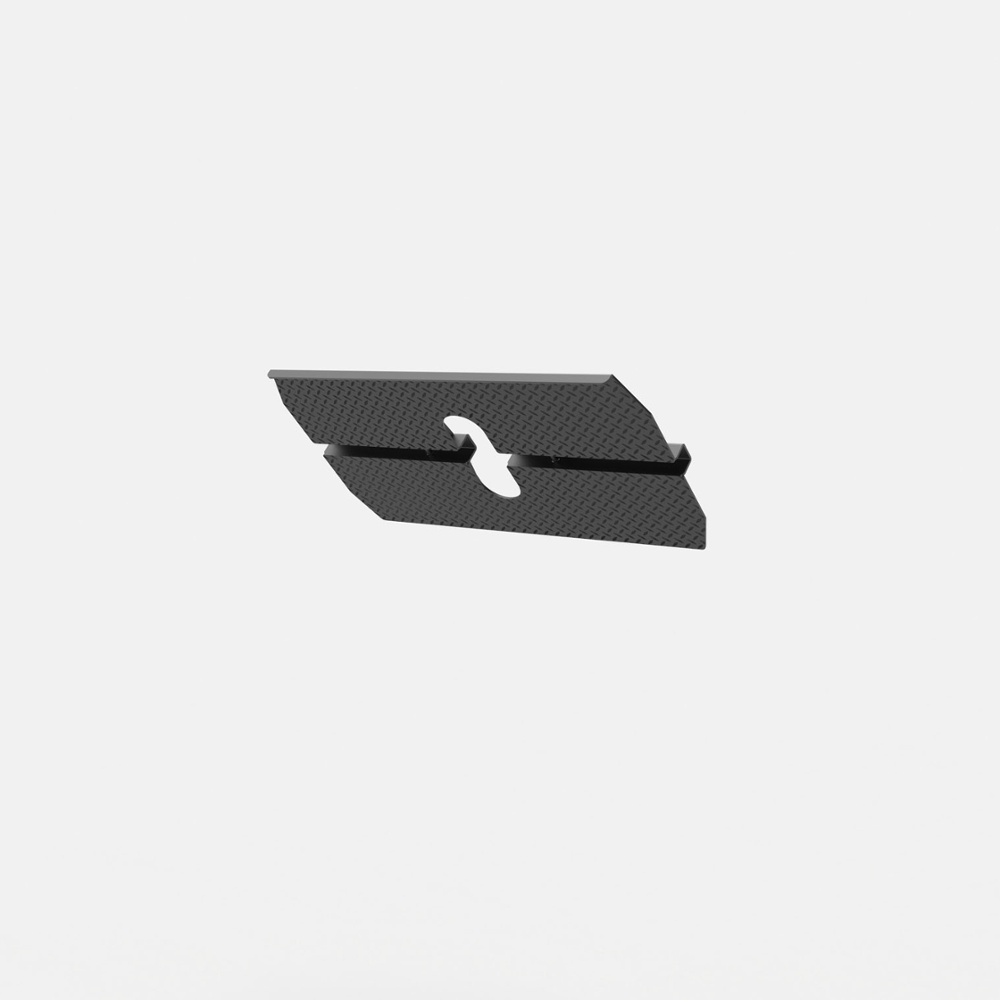

3-IN-1 dual pulley, smith machine, rack. 2 J-hooks, 2 safety spotter arms, chin-up bar, dip up bar, barbell storage, 6 weight plates holders for ø50 mm and 25 mm plates, 8 olympic spring clips ø49 mm. Attachments : ankle strap, rope, chain, landmine, non-slip metal footplate, 2 Y- handles, V-bar, short straight bar, straight bar and curved bar.

J-CUP/SAFETY SPOTTER ARMS
Extra strong - 5 mm thickness with UHMW (Ultra High Molecular Weight) protection pads, adjustable on 31 levels (321-1822 mm) distance 50 mm

The images and data in the catalogue and in the site tds may differ in some details from the originals

COMPARE

Technical data

Product code
Product code	ASX-4500
Max user weight
Max user weight	135 kg
Characteristic

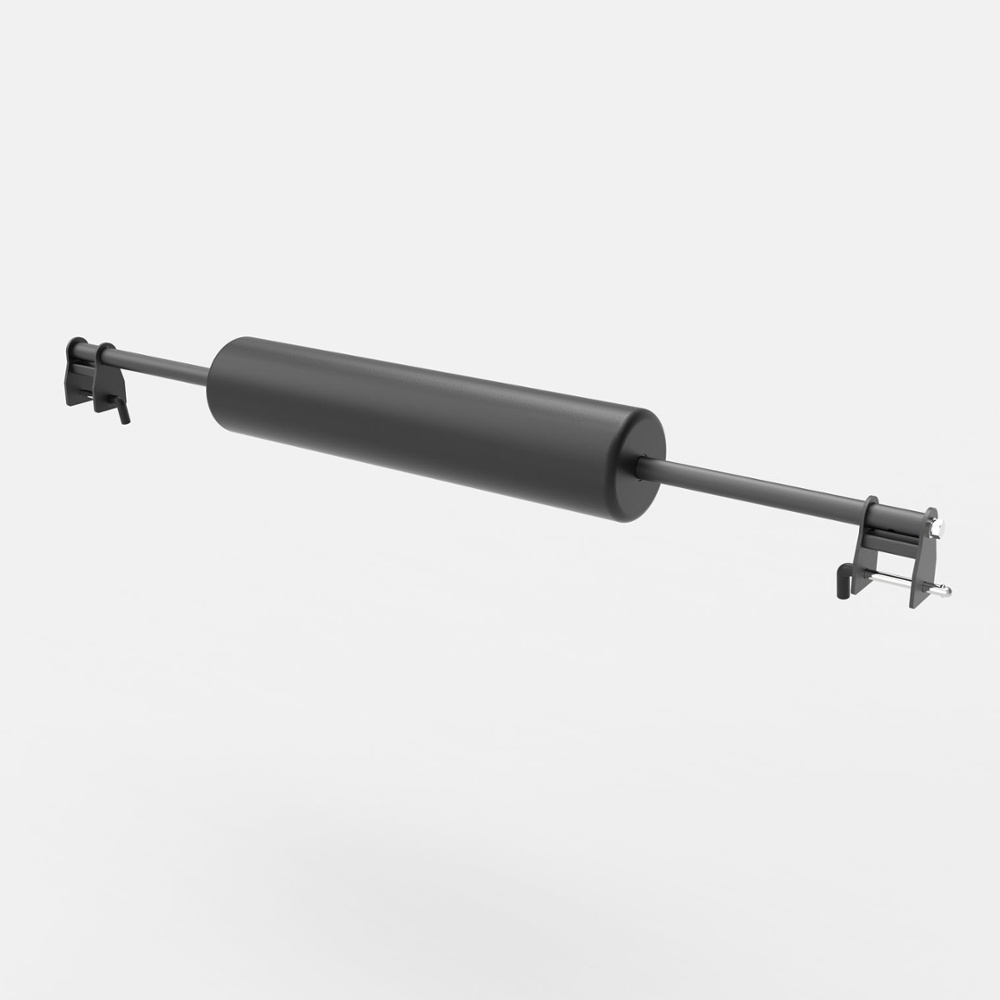

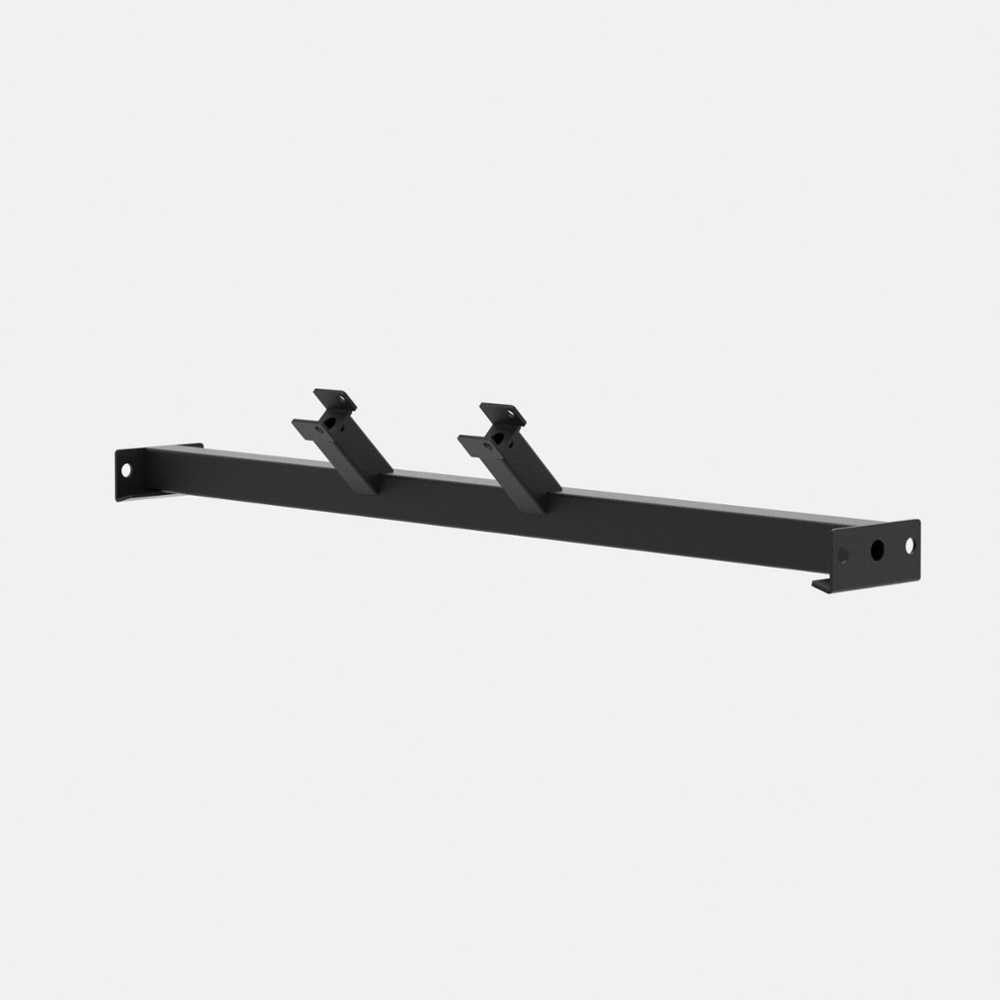

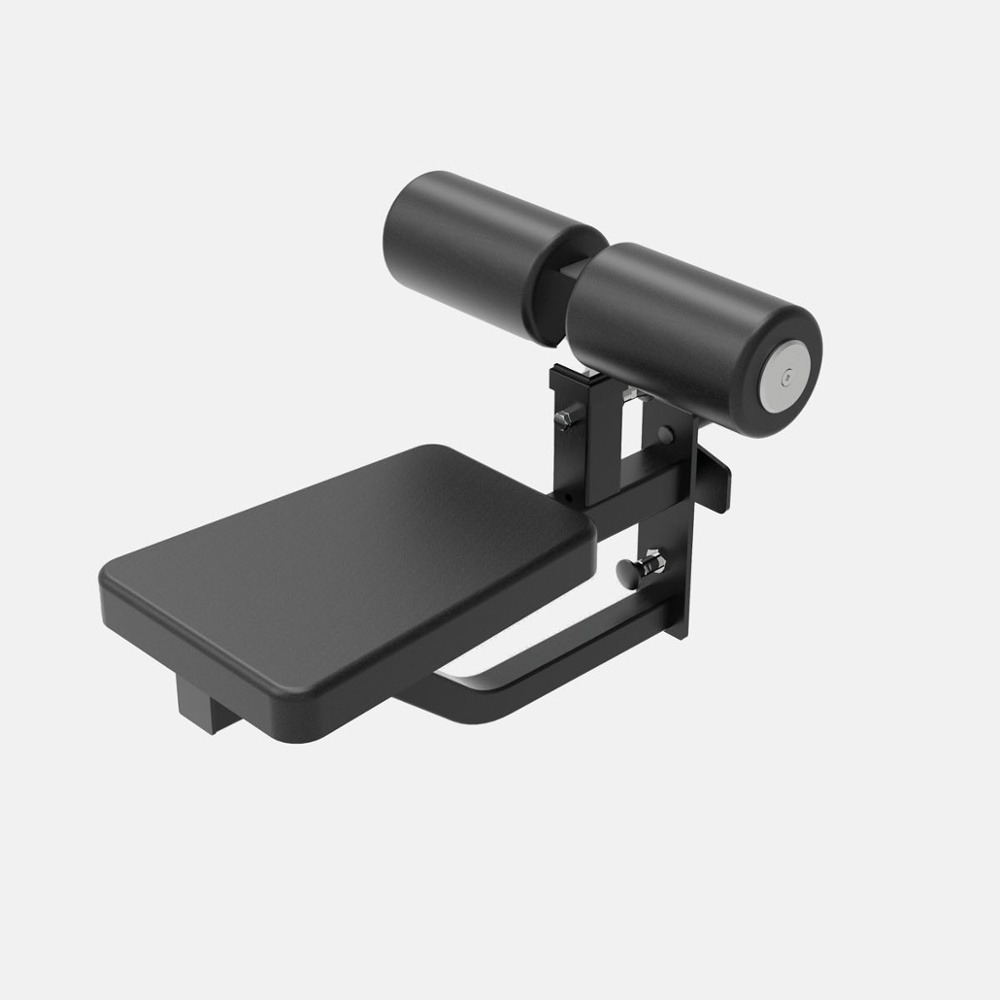

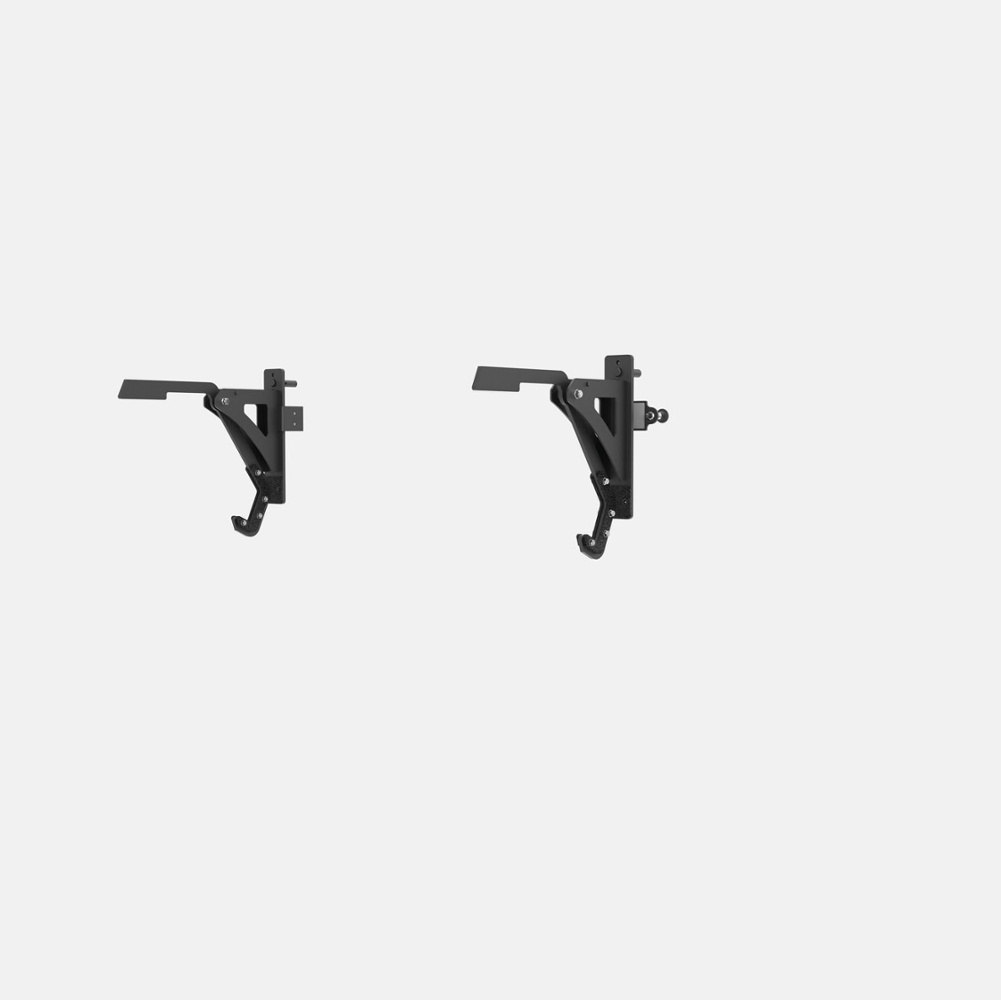

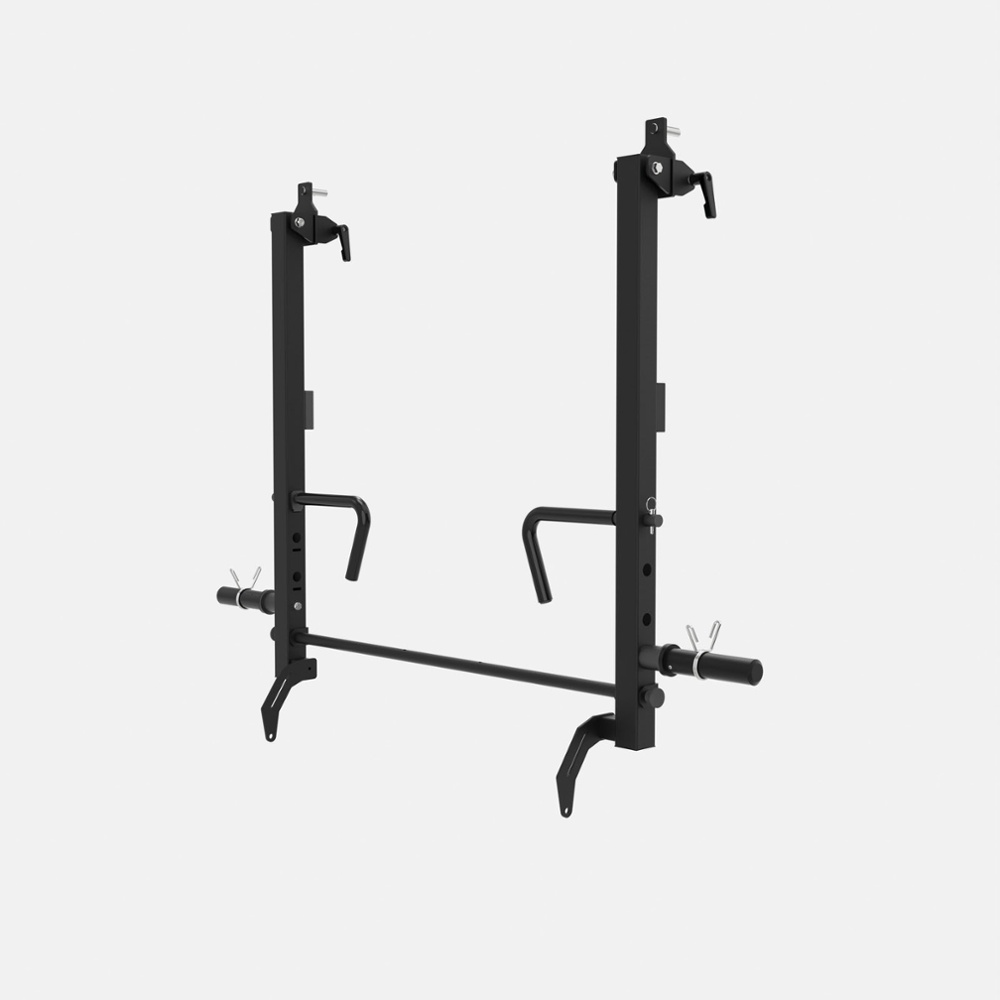

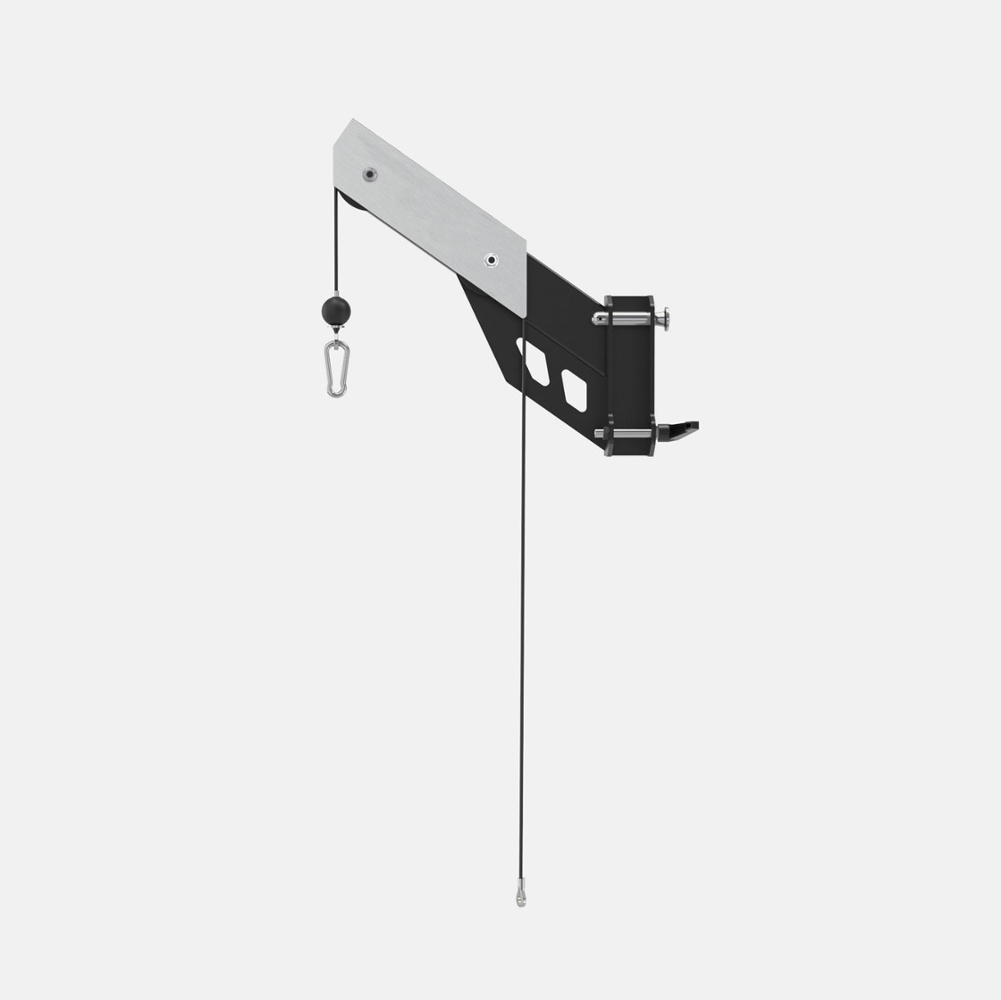

Characteristic	Ratio: 1:1 & 1:2 / fly handle - 1:1 & 1:2 / lat pull down - 1:1 & 1:2 / seated rowing Steel weight stack 2x90 kg with protective casing PULLEY adjustable on 31 levels (321-1822 mm) distance 50 mm J-CUP/SAFETY SPOTTER ARMS Extra strong - 5 mm thickness with UHMW (Ultra High Molecular Weight) protection pads, adjustable on 31 levels (321-1822 mm) distance 50 mm BARBELL 2037 mm, linear bearings sliding, 2 safety systems with hook to avoid barbell falling, vertically adjustable on 11 levels (353-1822 mm), distance 130 mm. Weight plate holder diameter suitable for ø50 mm weight plates EQUIPMENT 3-IN-1 dual pulley, smith machine, rack. 2 J-hooks, 2 safety spotter arms, chin-up bar, dip up bar, barbell storage, 6 weight plates holders for ø50 mm and 25 mm plates, 8 olympic spring clips ø49 mm. Attachments : ankle strap, rope, chain, landmine, non-slip metal footplate, 2 Y- handles, V-bar, short straight bar, straight bar and curved bar. OPTIONAL COD. ARMSASX4500 Jammer arms COD. LAT-SEATASX-4.5-6 Lat seat COD. LEG-PRESSASX Leg press COD. W-HOLDERASX Weight plates holder COD. M-BARASX Multifunctional bar COD.LPDASX-4.5-6 Lat pull down COD. MLIFTASX-4.5-6 Monolift COD. LP-SUPPORTASX4500 Leg press support
Frame
Frame	rectangular tubing 50x70 mm - thickness 2,5 mm
Weight
Weight	363.2 Kg
Set up size
Set up size	2035 x 1730 x 2130 mm
Gross weight
Gross weight	381.8 Kg
Packing size
Packing size	A: 1720x305x180 B: 2120x300x180 C: 1370x395x230 D: 1220x445x190 E: 560x525x190 F: ∅92x2125 G: 745x585x160 H: 375x220x125 I: 375x220x125 L: 375x220x125 M: 375X195X125 N: 375X195X125
EAN
EAN	8029975806242
