racks & ladders

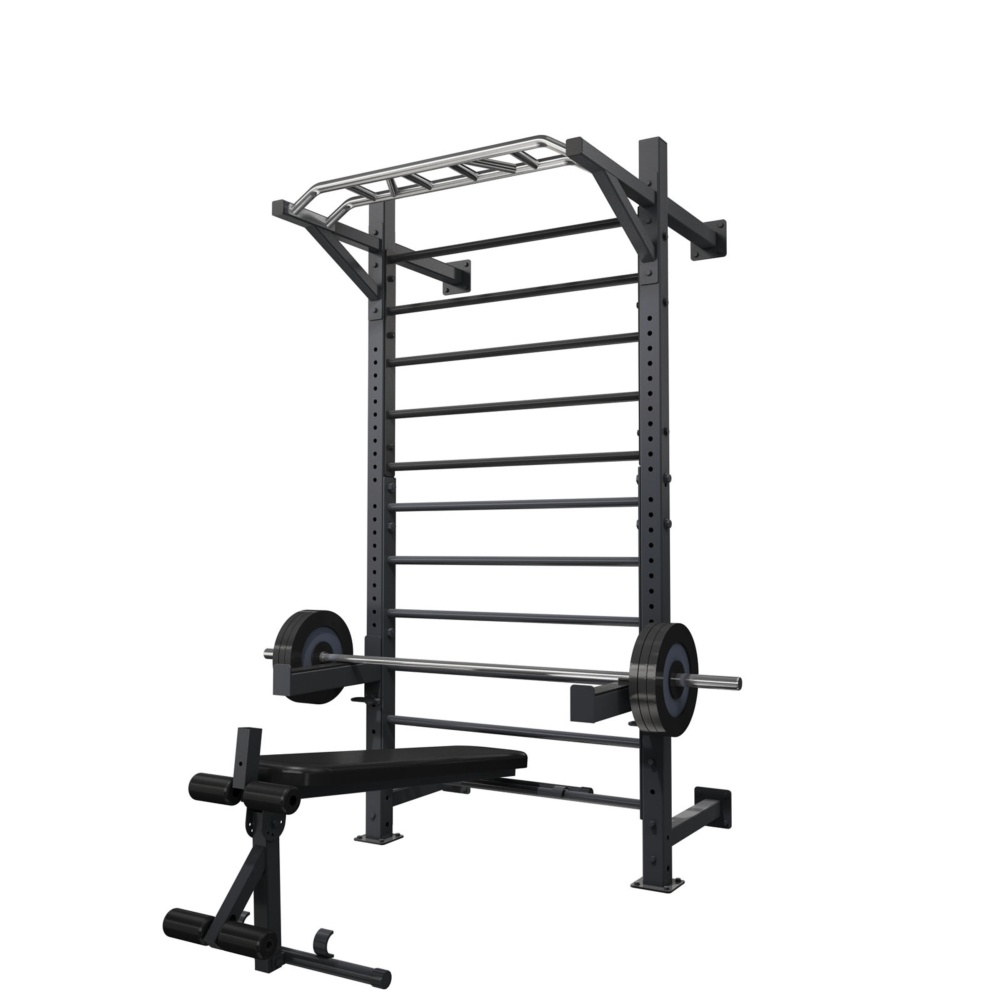

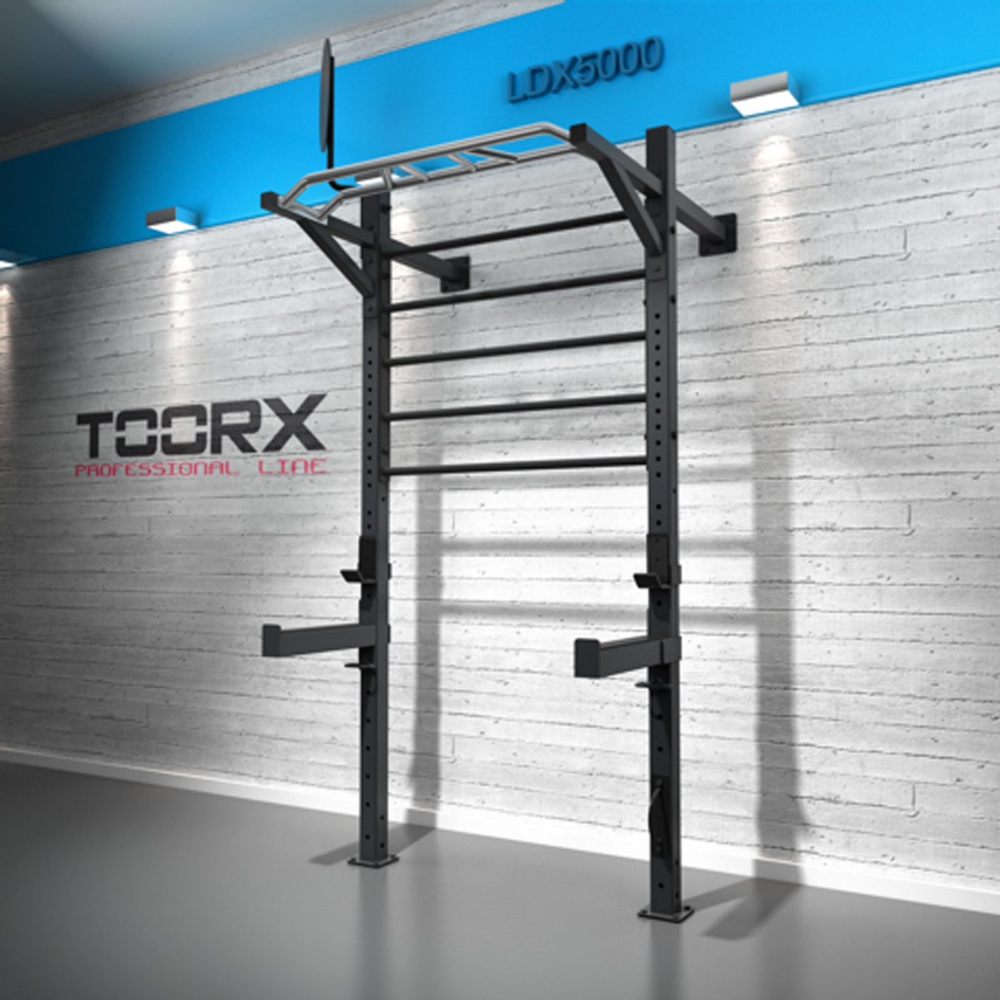

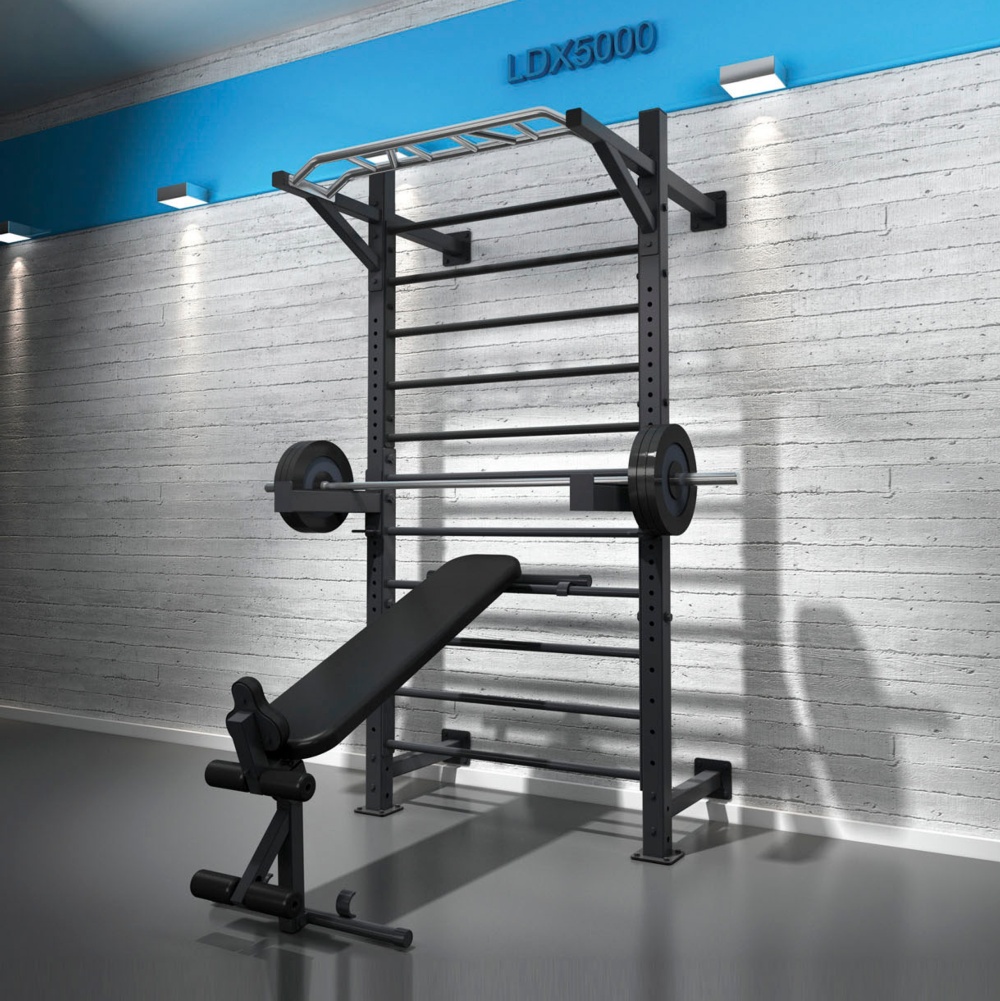

LDX 5000
MULTIFUNCTIONAL LADDER
cod. LDX-5000
  • KEY POINTS
  •  J-hook
    extra strong 6 mm thickness with UHMW (Ultra High MolecularWeight)
     Truss
    with 6 non-slip handles. 2230 mm from the ground up - width 1080 mm - ø36 and ø 30 mm
     Uprights structure
    reinforced steel square tube 75x75x3 mm
     bars module with rack configuration
    n°5 bars 1050xø32. Dimensions 1050x60x872 mm. Fixing with bolts
     Wall brackets
    n° 2 length 512 mm.
The images and data in the catalogue and in the site tds may differ in some details from the originals
loading ... COMPARE COMPARE NOW

Technical data

Product code
Product codeLDX-5000
Max user weight
Max user weight120 kg
Use
UseCOMMERCIAL USE
Characteristic
Characteristic
  • Equipment/notes: 2 j-cups, truss
  • Truss: with 6 non-slip handles. 2230 mm from the ground up - width 1080 mm - ø36 and ø 30 mm
  • Module with rack configuration: n°5 bars 1050xø32. Dimensions 1050 x 60 x 872 mm. Fixing with bolts
  • Wall brackets: n° 2 length 512 mm

OPTIONAL

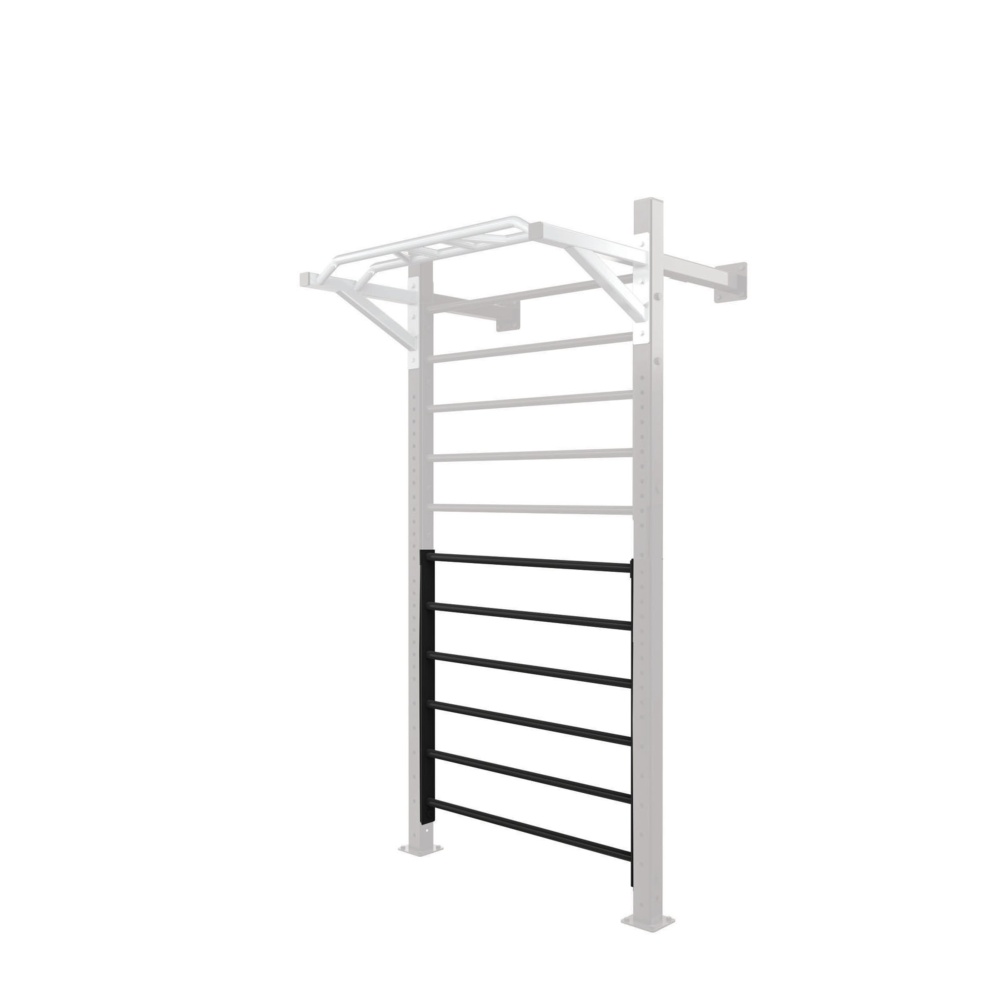

  •  COD. COD. ALDX5-MPS
    BARS MODULE WITH LADDER CONFIGURATION :  n°6 bars 1050xø32 mm. Dimensions 1240x75x1125 mm. Fixing with bolts included
  •  COD. ALDX5-SU

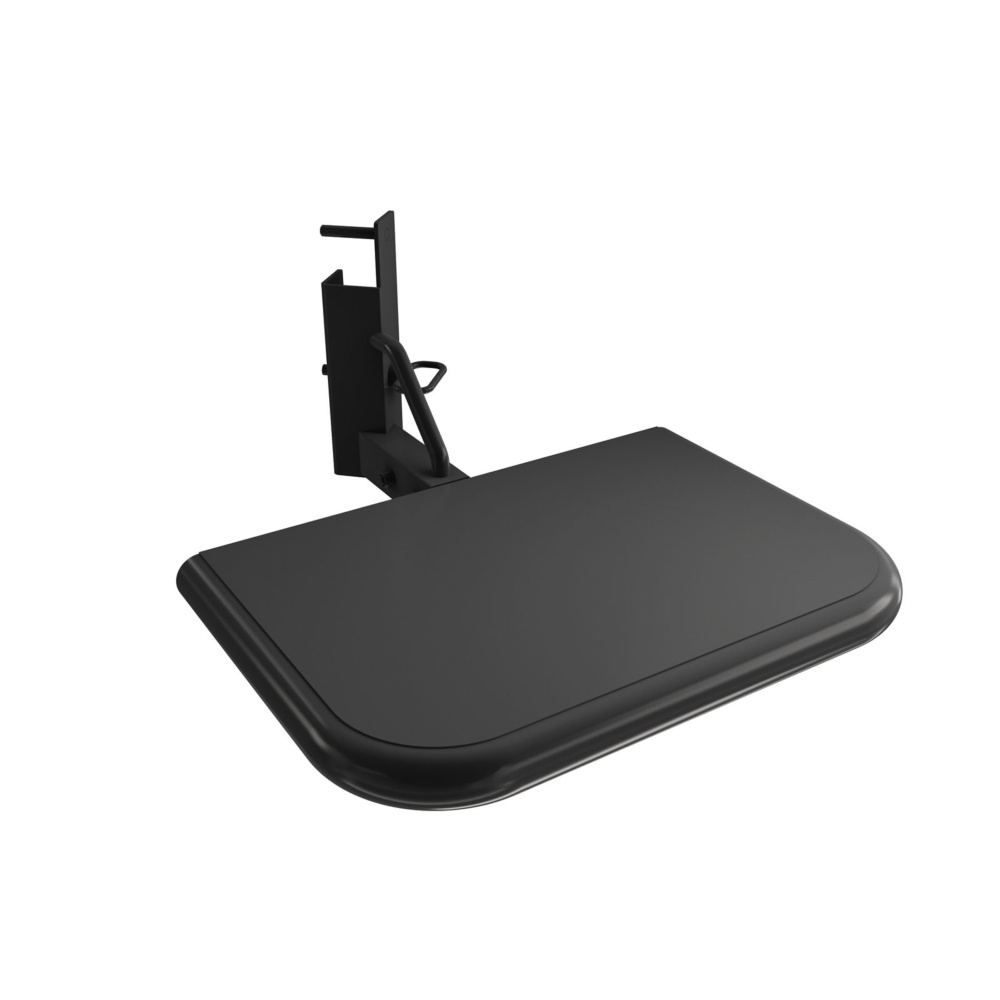

    STEP PLYO: platform surface 600x500 mm. Safety pin ø16 mm. Quick release fixing system with ø16 mm pin.

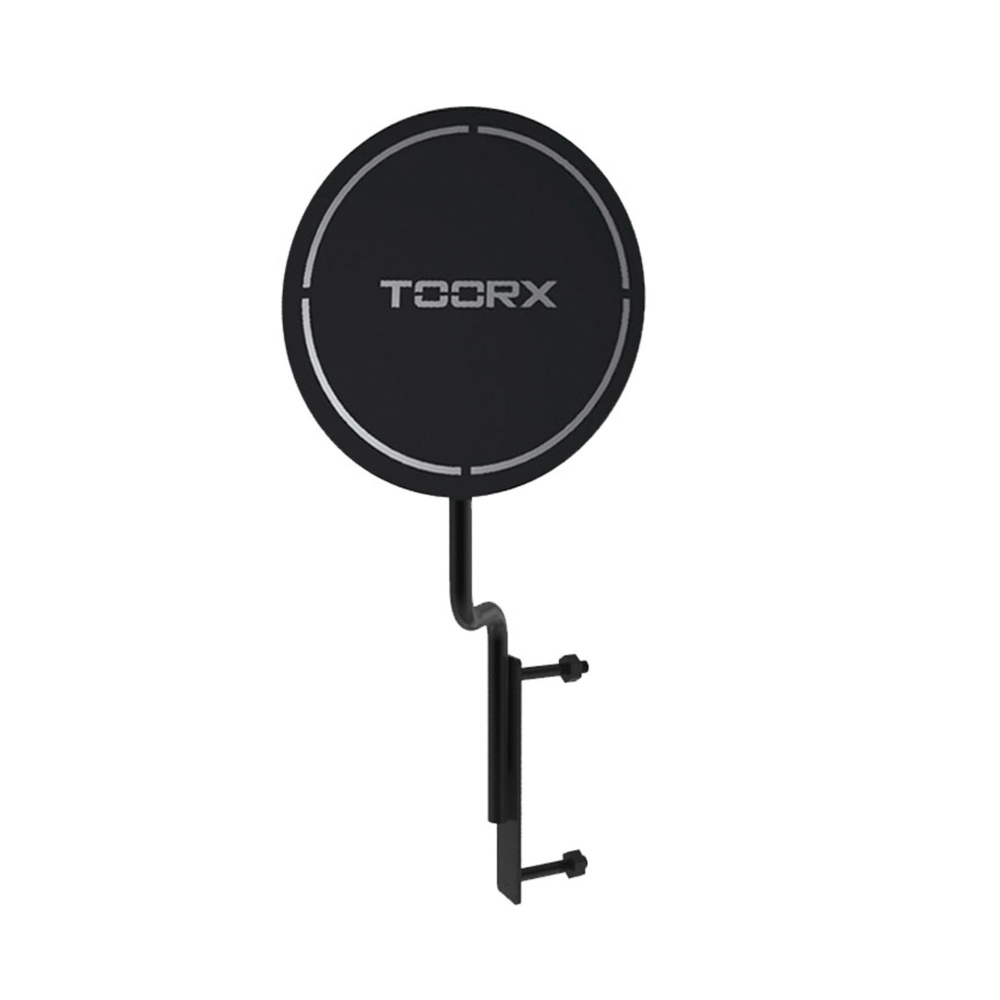

  •  COD. ALDX5-B
    TARGET:  disc dimensions ø40 mm. 6 mm thick brackets
  •  COD: AG75-P

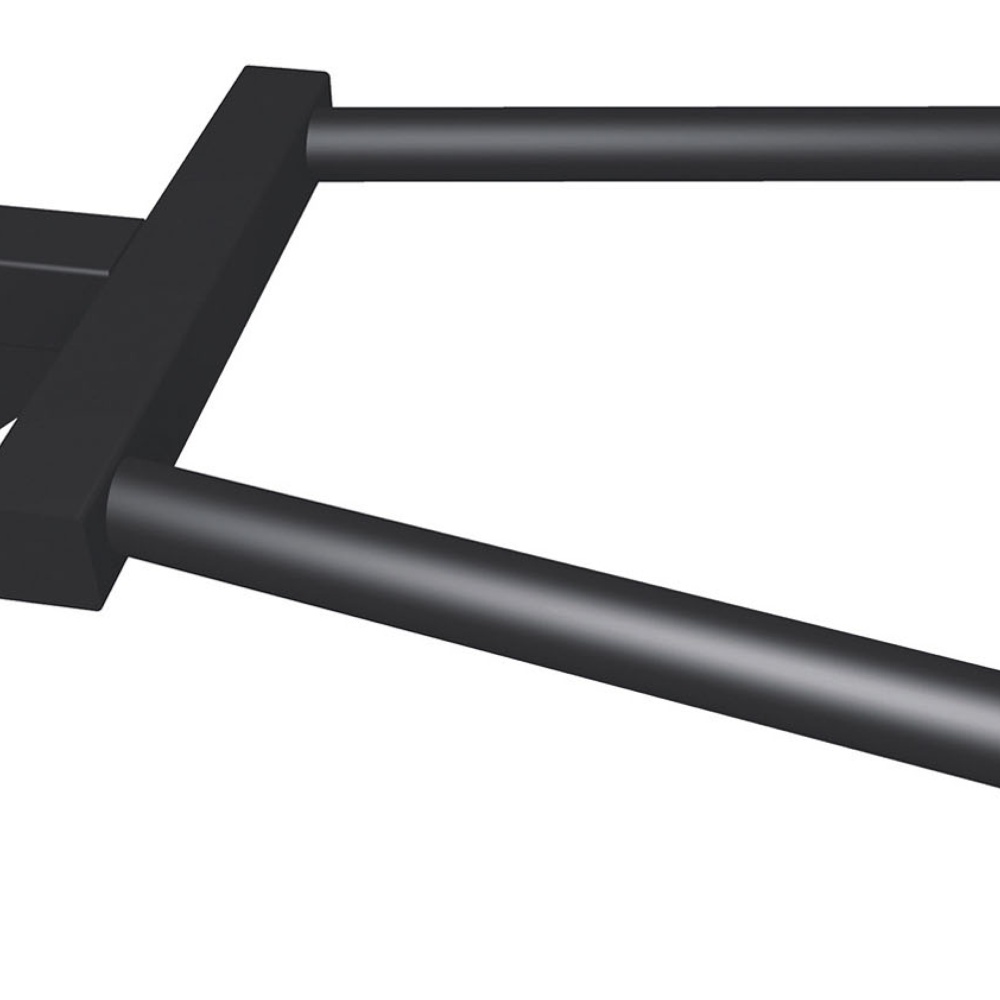

    DIP HORNS: dimensions 887x600x358 mm. Safety pin ø16 mm. Quick release fixing system with ø16 mm pin.
  •  COD. AG75-FS

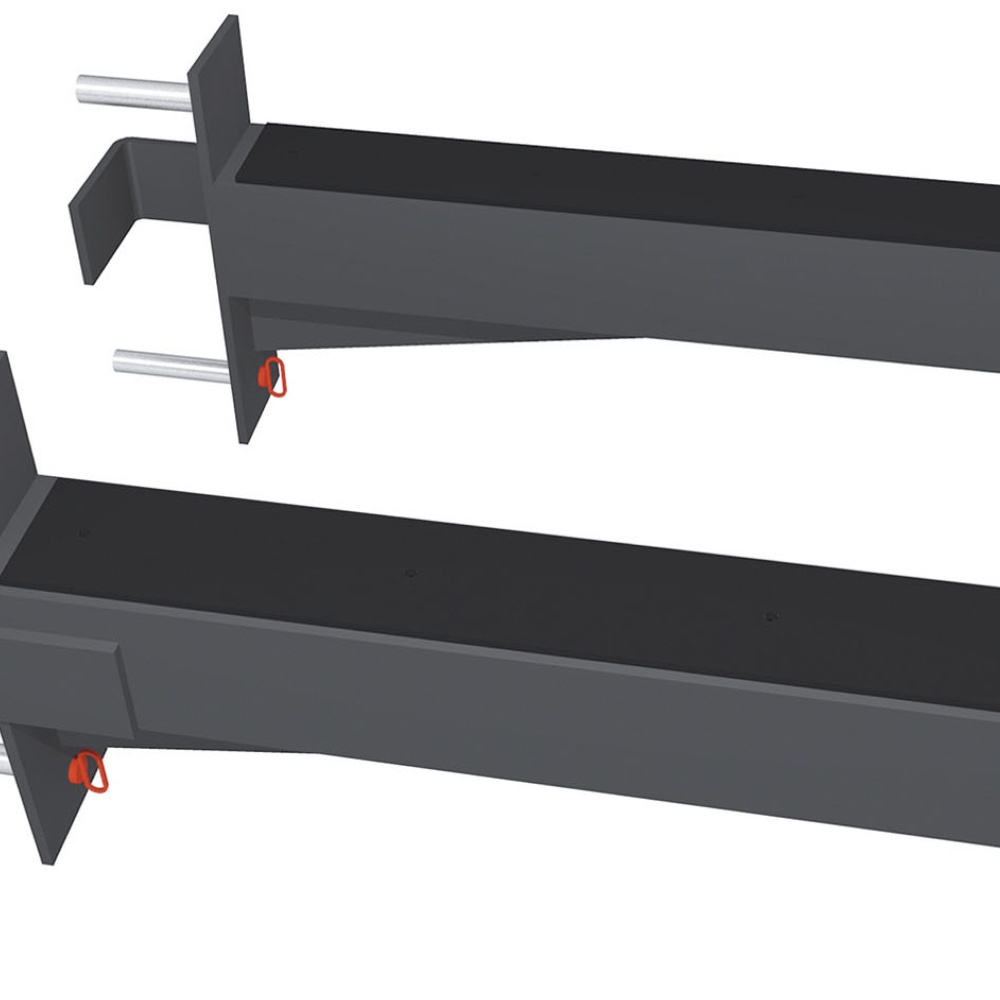

    SAFETY SPOTTER ARMS: sthickness 8 mm. Surface length 500 mm. Protection pads and ø16 mm safety pin included. Quick release fixing system with ø16 mm pin.

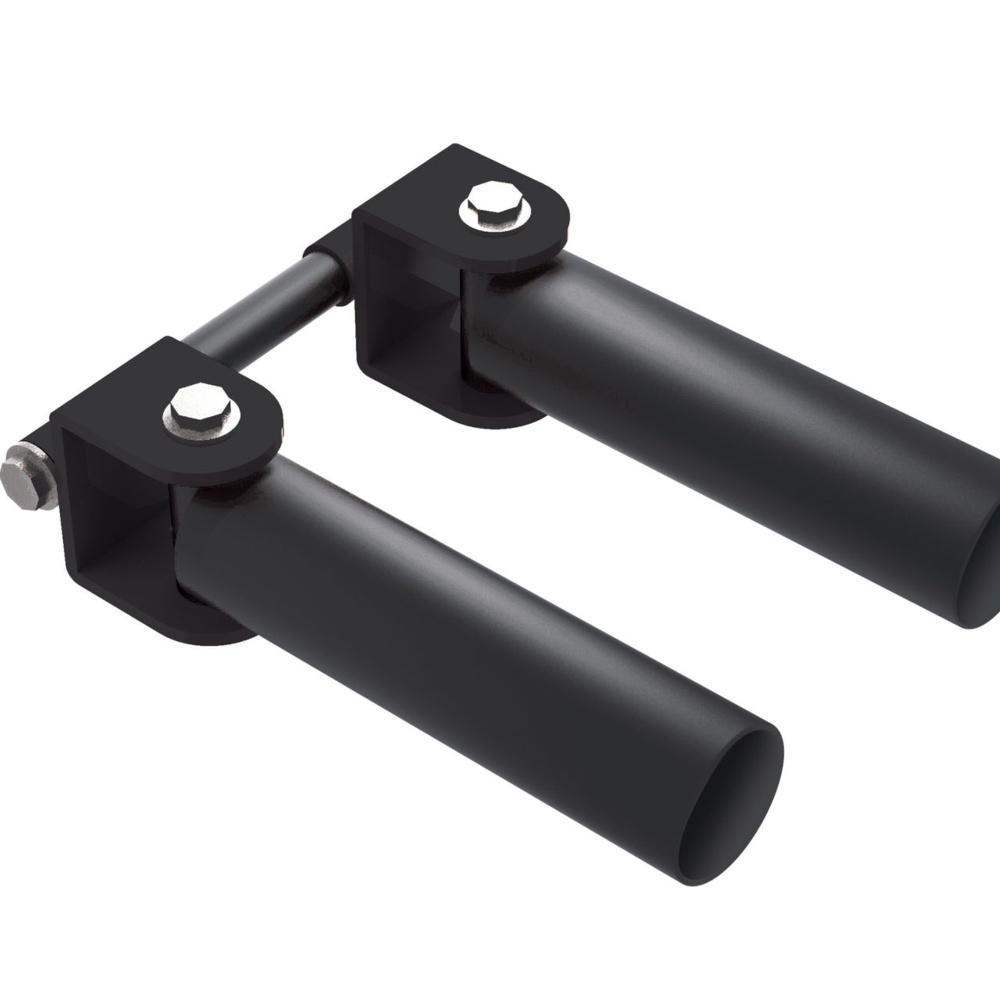

  •  COD.AGU-LD
    LANDMINE DOUBLE: cardan joint with dual slot for ø50 mm barbells. Length 250 mm

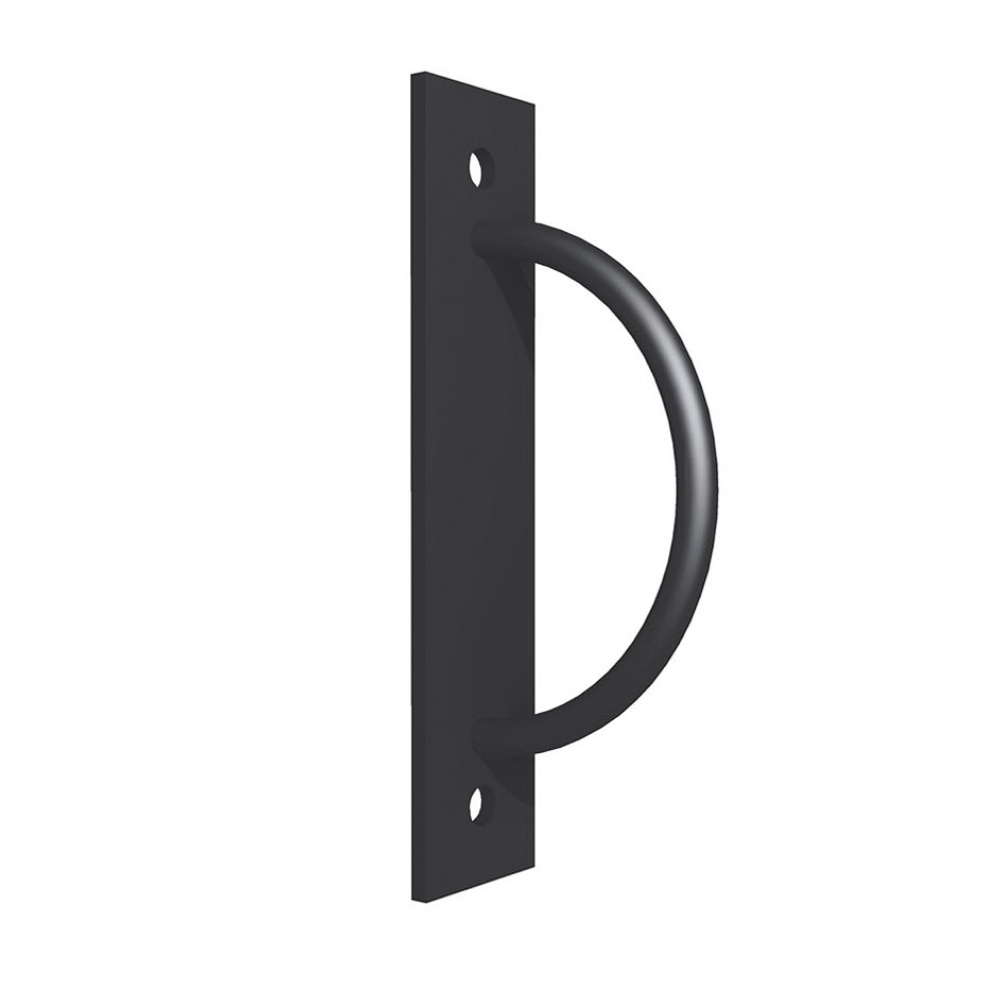

  •  AGU-GC
    ROPE RING: designed for battle rope, climbing rope and boxing bag

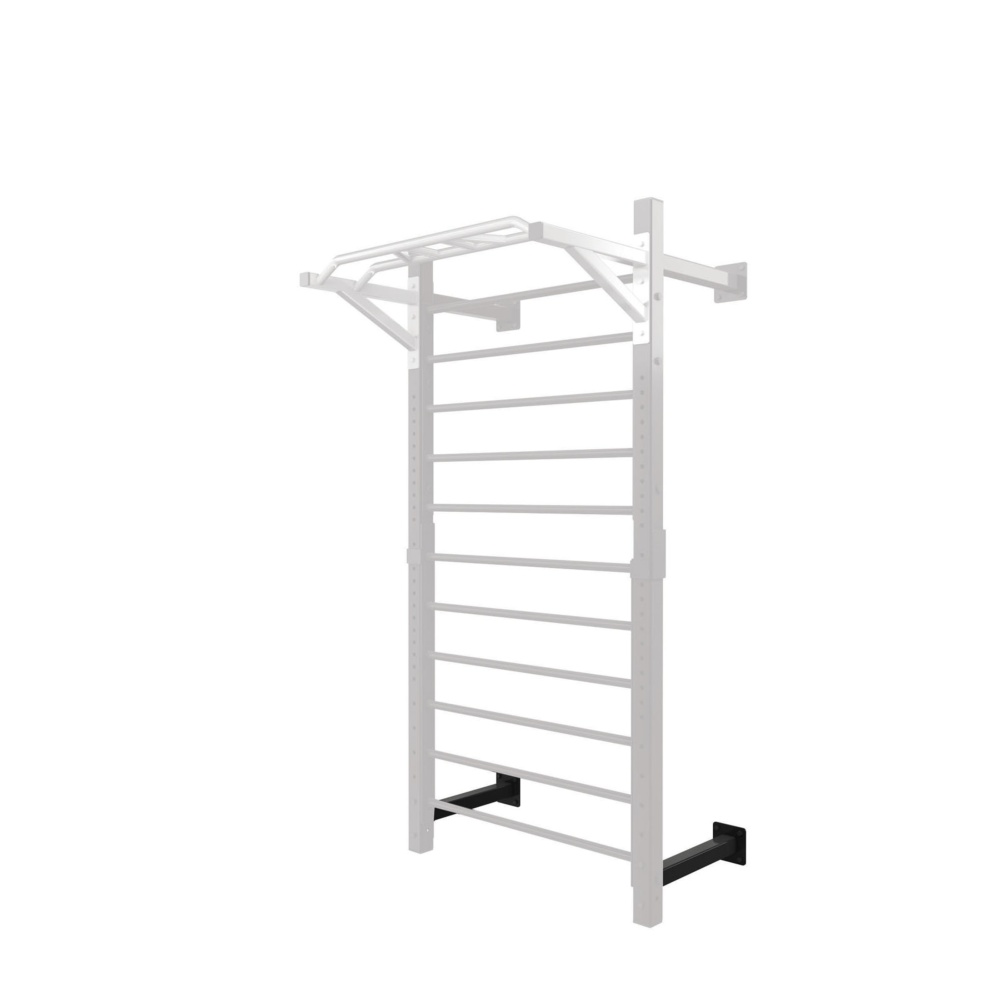

  •  COD. ALDX5-SM
    ADDITIONALWALL BRACKETS: fixing to the wall only

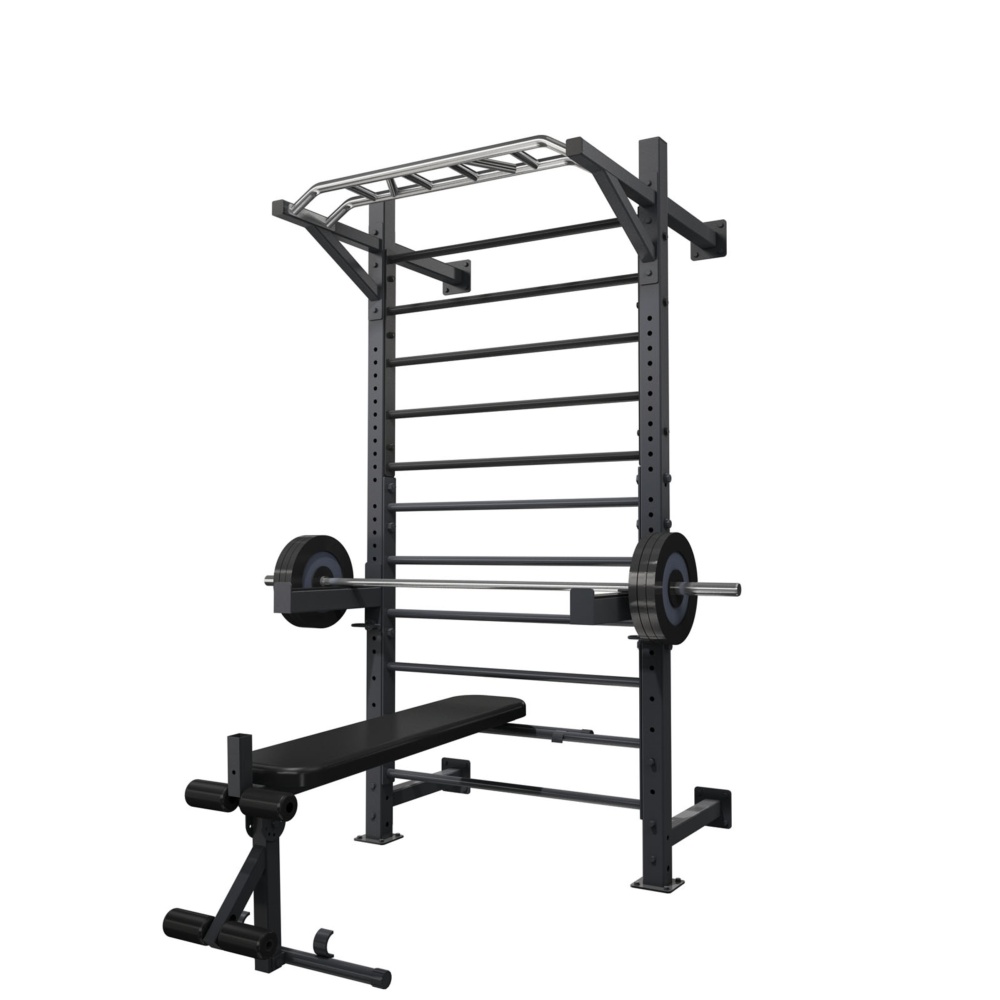

  •  COD. PANCA-LDX3-5

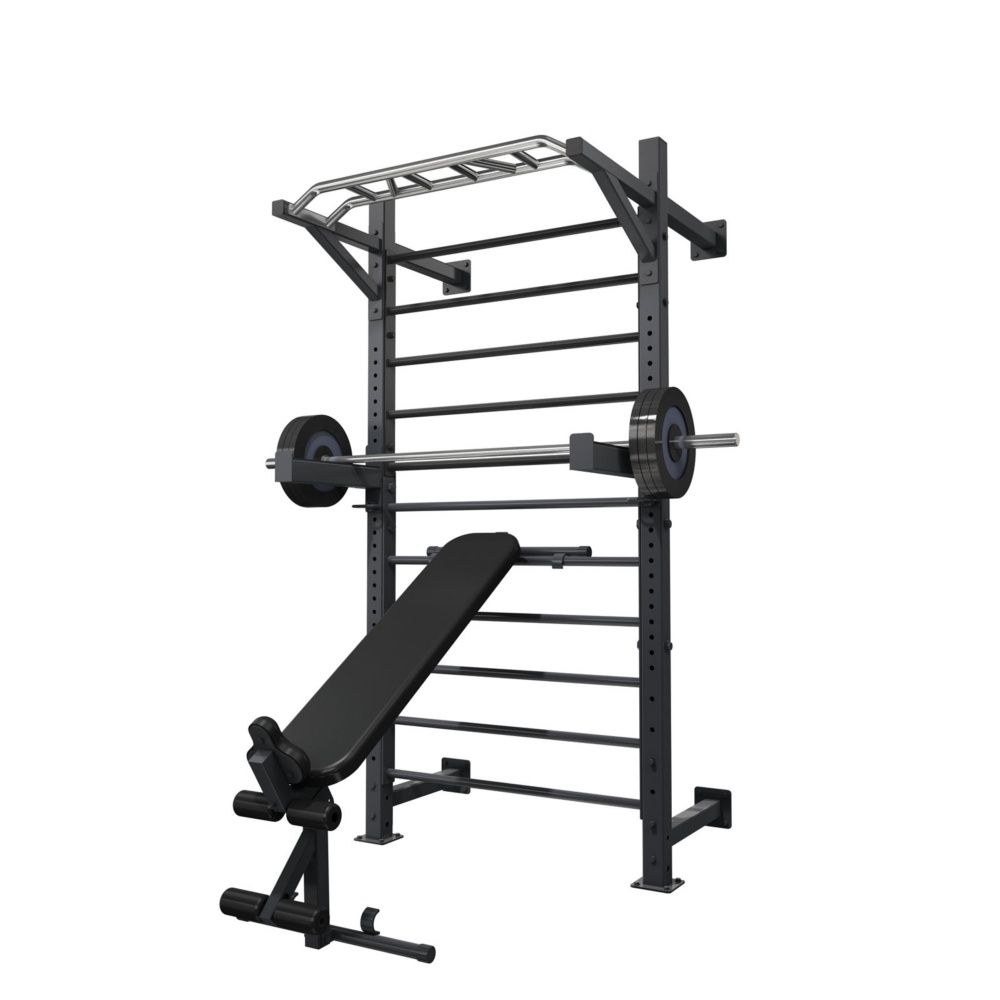

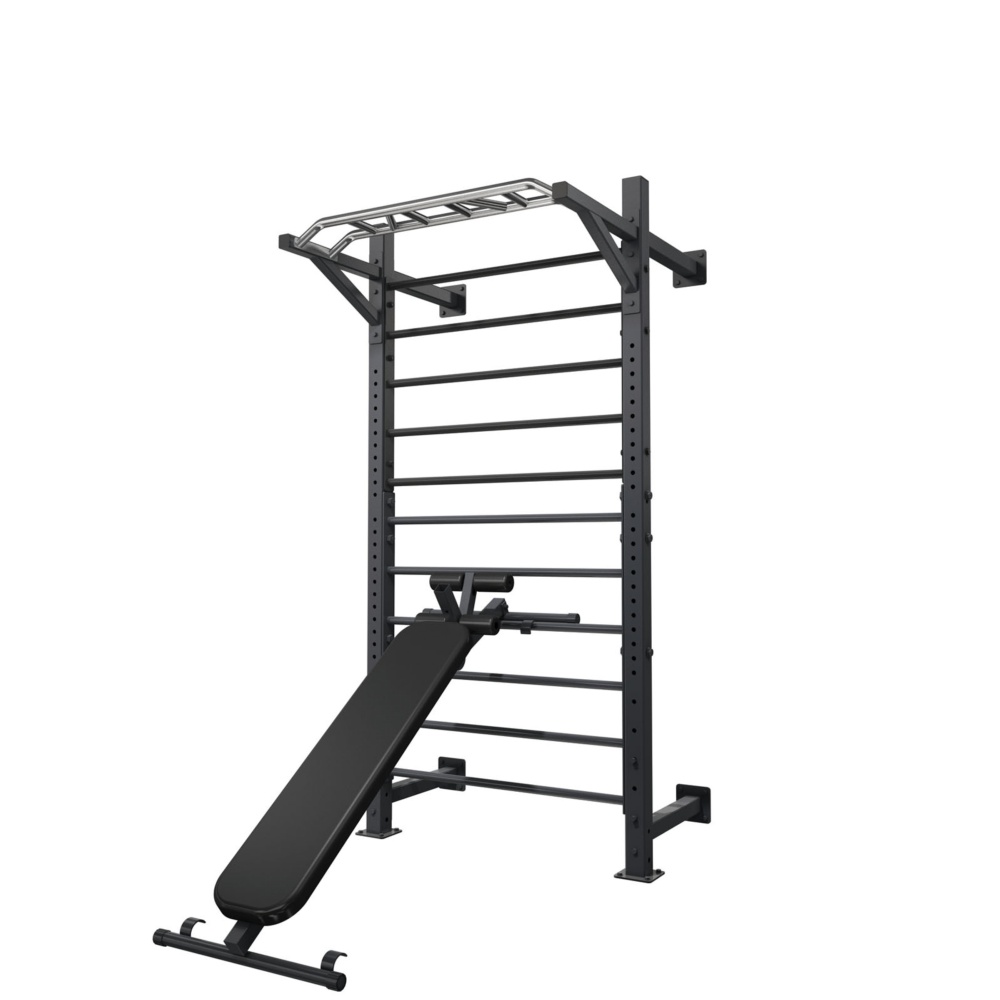

    BENCH: dimensions 1346x666x857 mm (flat position). Backrest dimensions 1230x300x50mm. Adjustable incline on 3 levels. Saddle dimensions 187x200x50 mm. Removable saddle. 4 modes of use: flat bench, abdominal bench, inclined bench and declined bench. Quick release fixing system with 2 hooks. Roller ankle cushions included
Frame
FrameStructure reinforced steel square tube 75x75x3 mm square tube 50x50x2mm
Set up size
Set up size1143 x 1131 x 2425 mm
Compliances
CompliancesEN20957-1 / EN957-4 class
EAN
EAN8029975805528

#gallery LDX 5000

Tag your photos and videos with #toorxvertical #equilibrioperfetto #toorx and join the Toorx community !

COD. ALDX5-SM - OPTIONAL
ALDX5-MPS - OPTIONAL
COD. ALDX5-SU - OPTIONAL
COD. ALDX5-B - OPTIONAL
COD: AG75-P - OPTIONAL
COD. AG75-FS - OPTIONAL
COD.AGU-LD - OPTIONAL
COD. AGU-GC - OPTIONAL
COD. PANCA-LDX3-5 - OPTIONAL
COD. PANCA-LDX3-5 - OPTIONAL
COD. PANCA-LDX3-5 - OPTIONAL
COD. PANCA-LDX3-5 - OPTIONAL
COD. PANCA-LDX3-5 - OPTIONAL

PDF Instruction Manual

Download the instruction manual in .PDF

not available. Check in other languages
Other languages:

PDF Technical Data Sheet

Download the technical data sheet in .PDF

» click to download
