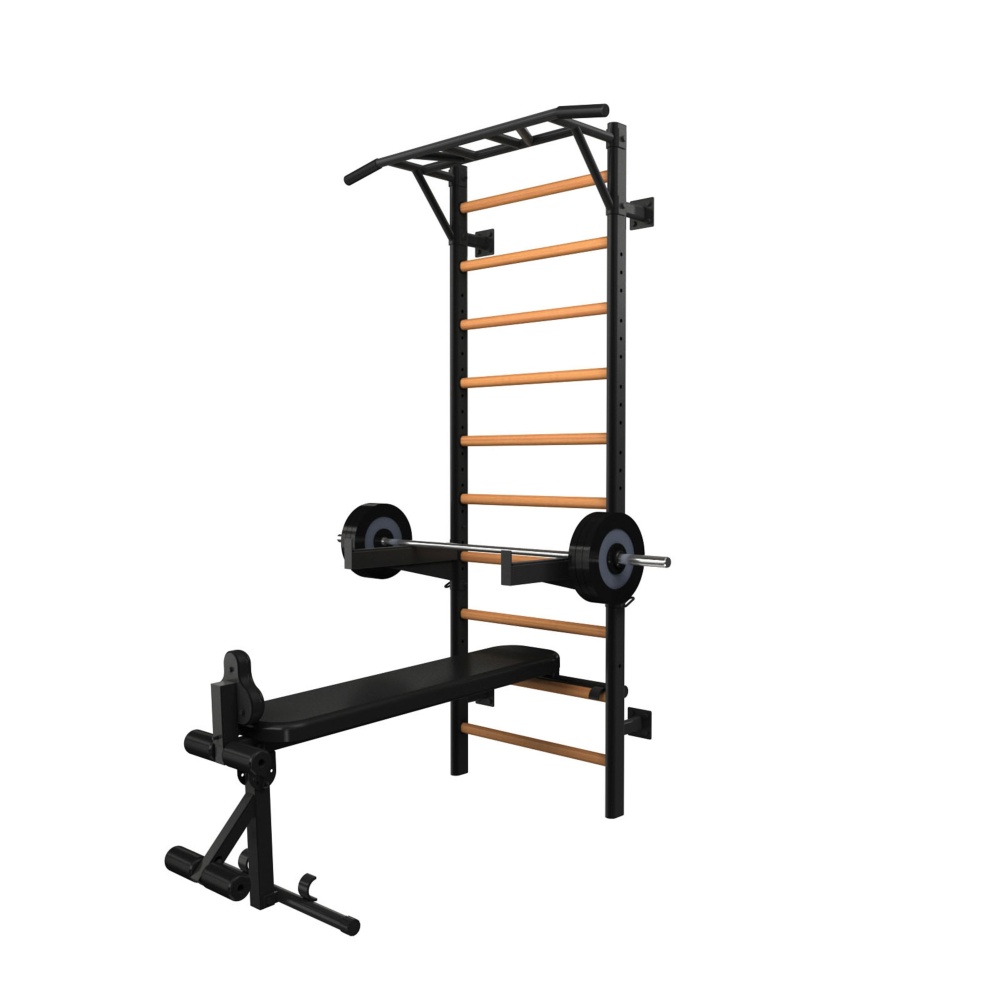

LDX-3000

The images and data in the catalogue and in the site tds may differ in some details from the originals

COMPARE

Technical data

Product code
Product code	LDX-3000
Max user weight
Max user weight	100 kg
Use
Use	COMMERCIAL USE
Characteristic

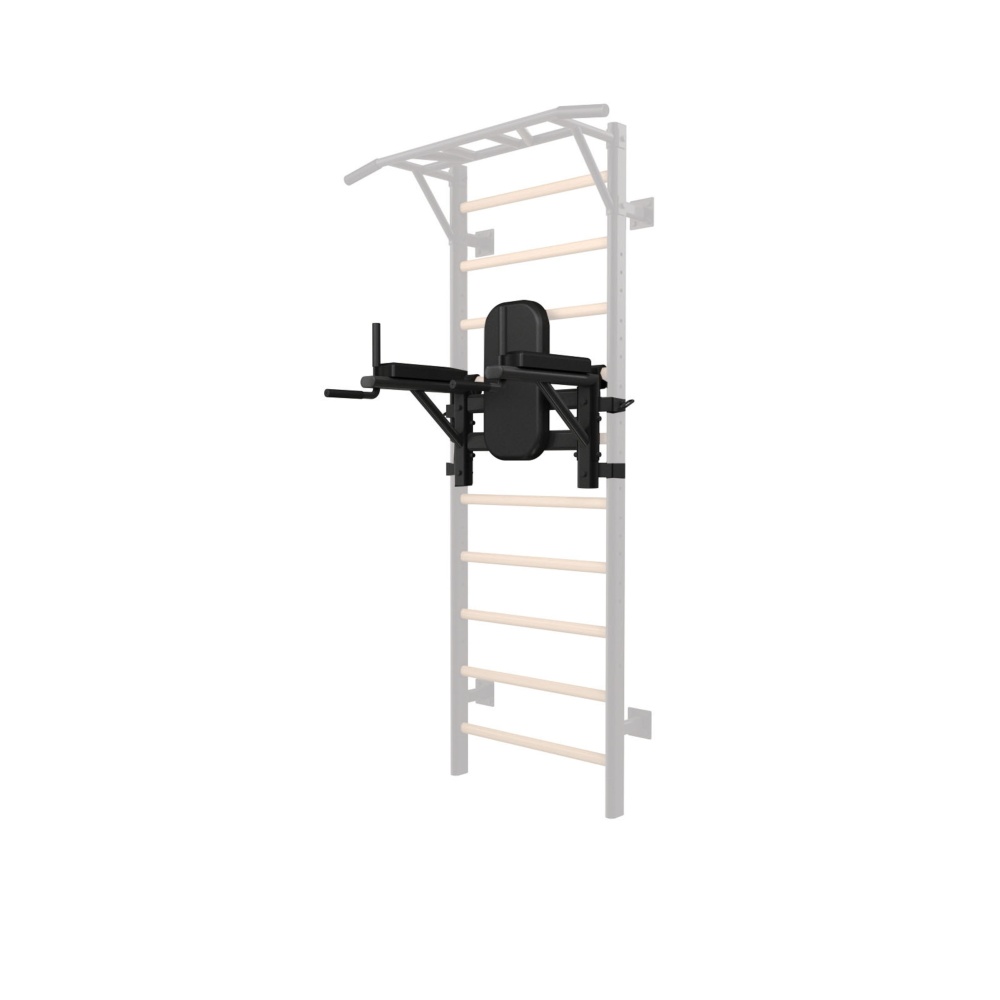

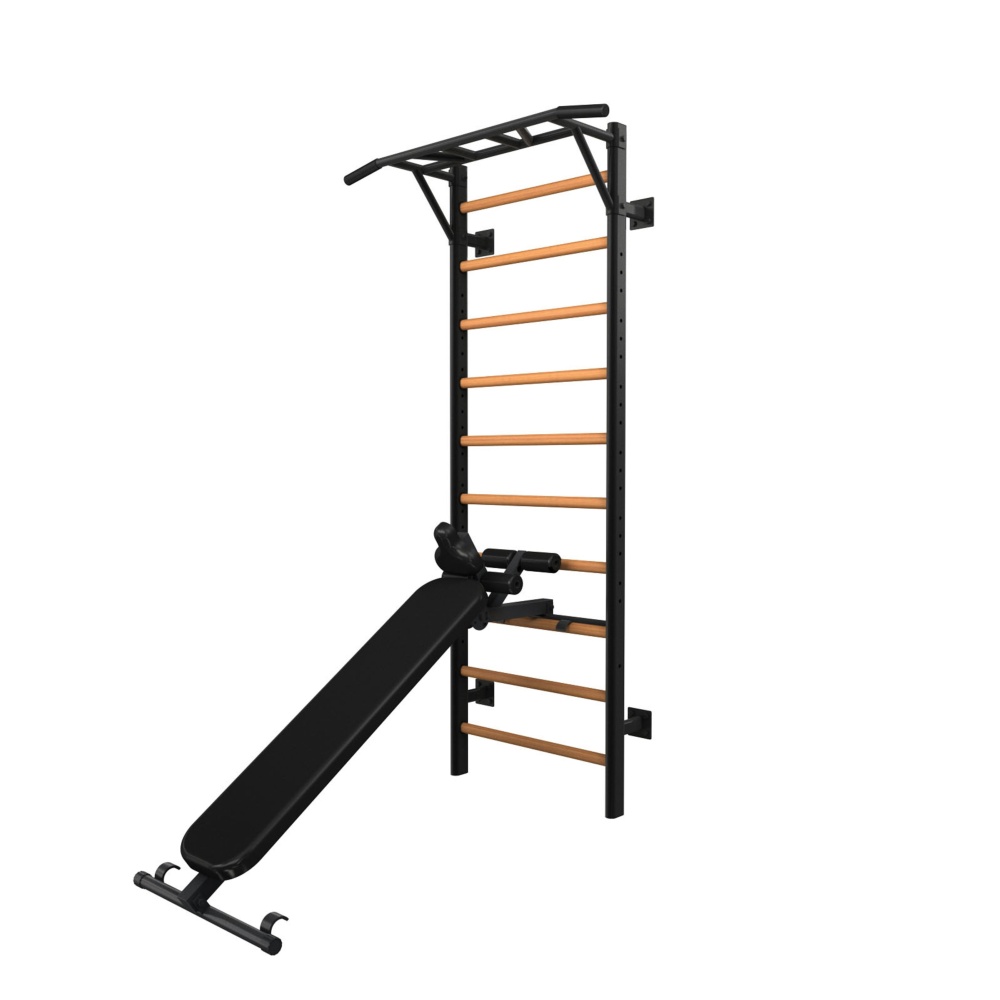

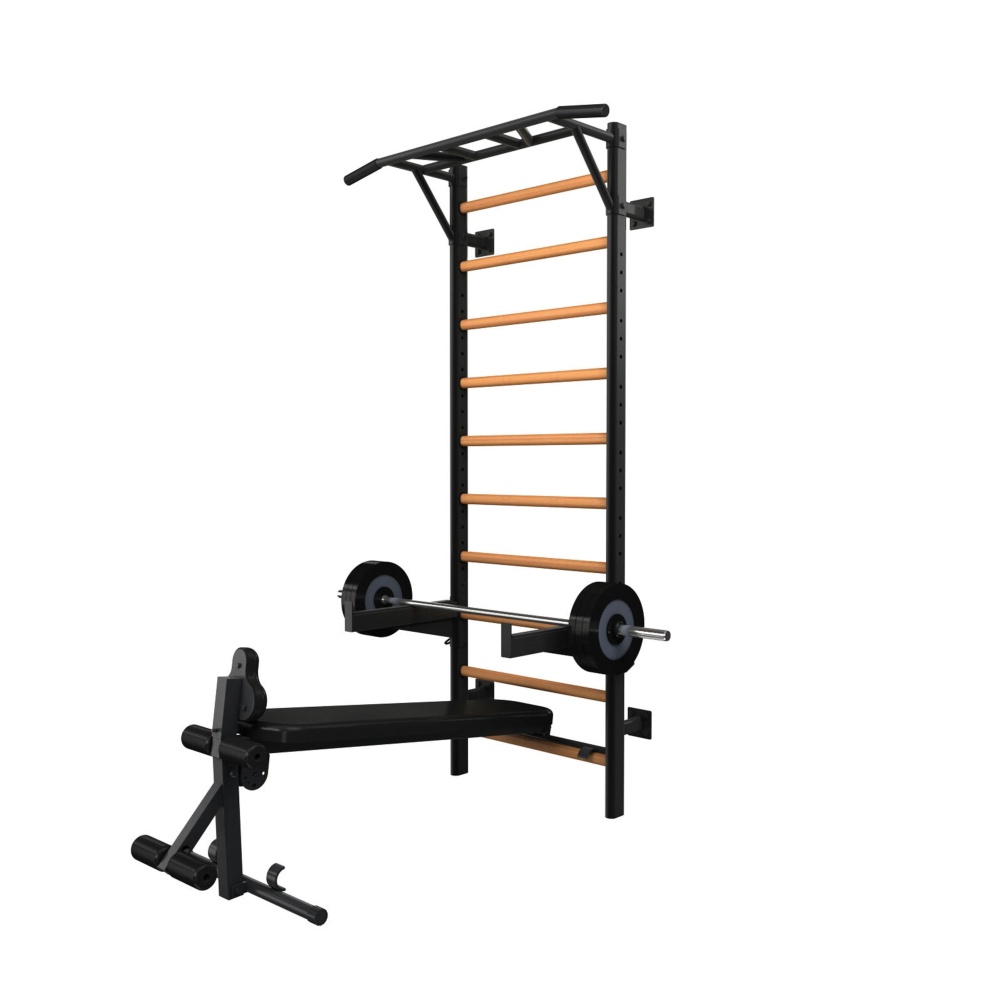

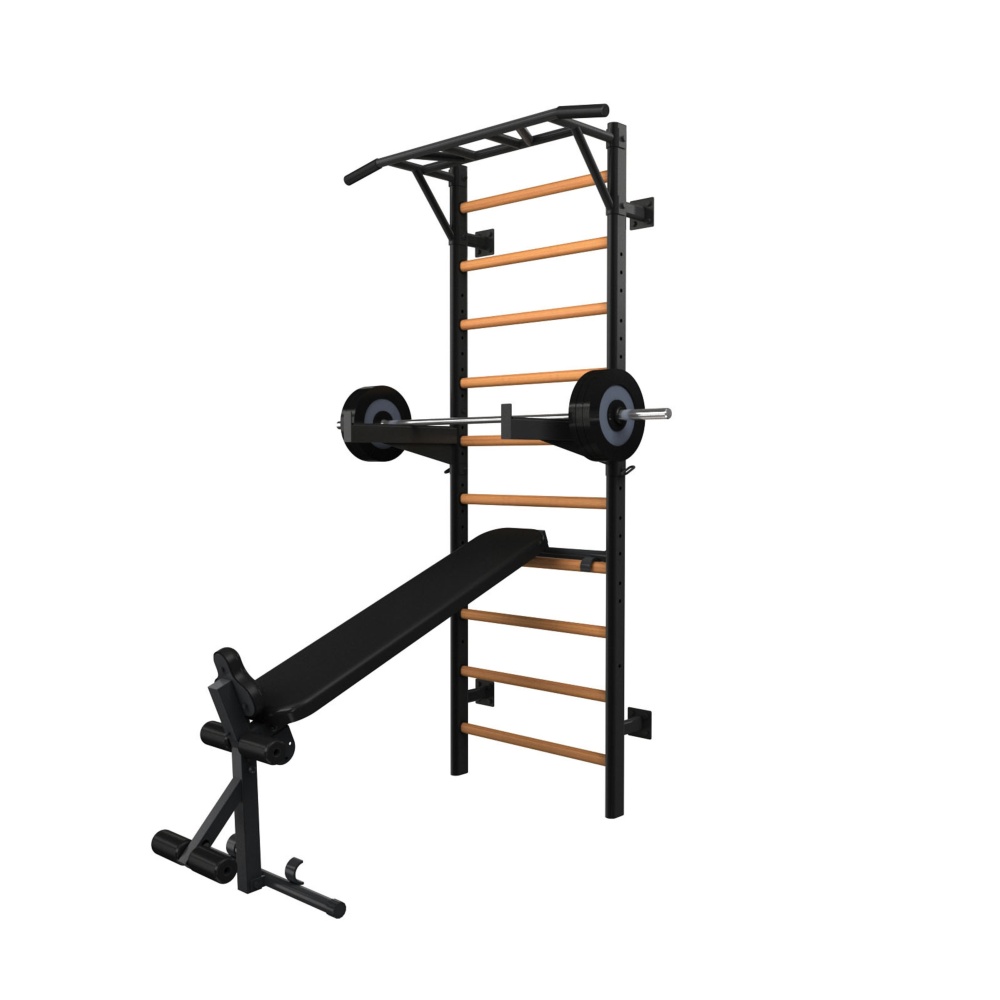

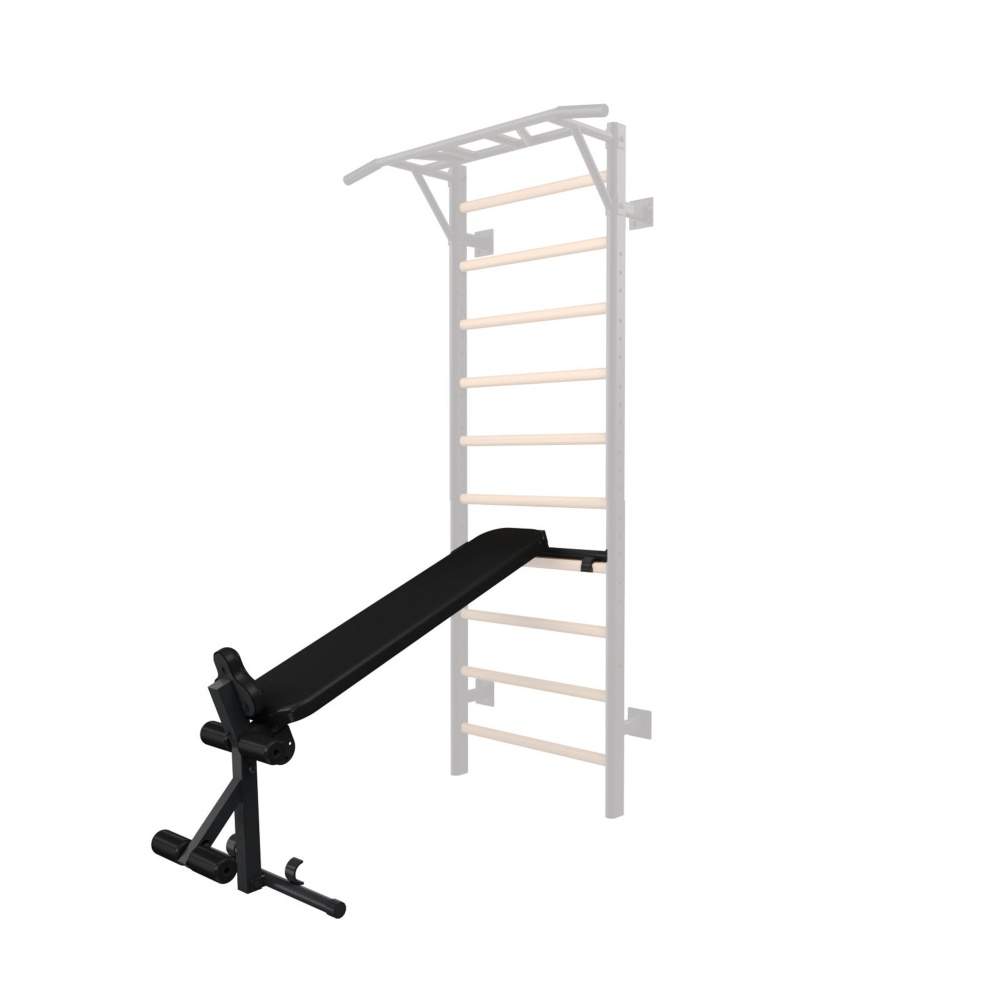

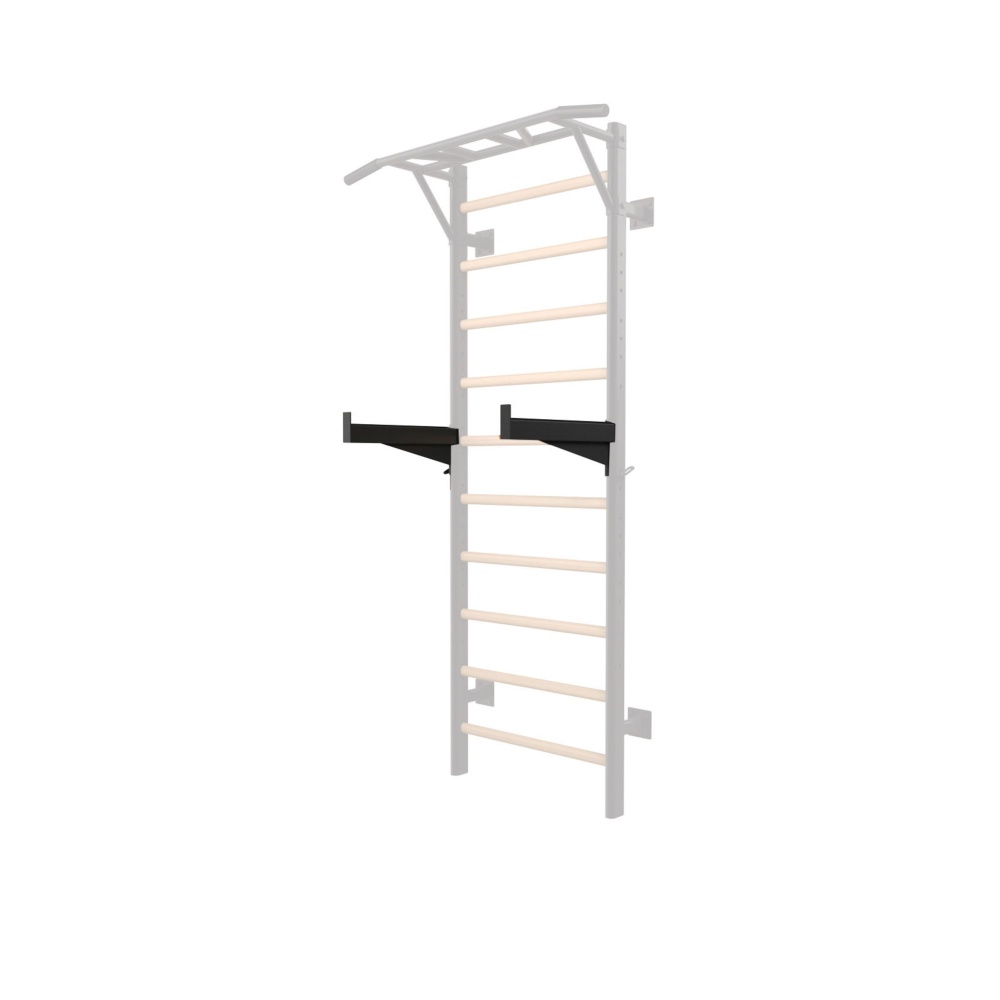

Characteristic	Equipment/notes: truss Truss with 6 non-slip handles. 2260 mm from the ground up - width 1208 mm - ø 32 mm Bars module with rack configuration n°10 wooden bars with oval section 40x32 mm. Width 710 mm. Distances among bars 220 mm. 160 mm from the ground to the first lower bar Wall brackets n°4 width 108 mm OPTIONAL COD. CFSLDX3000 SAFETY SPOTTER ARMS: thickness 4 mm. Surface length 500 mm. Protection pads and ø16 mm safety pin included. Quick release fixing system with ø16 mm pin. COD. DIP-STATIONLDX3000 DIP STATION: dimensions 797x724x570 mm. Cushions thickness 60 mm. 2 ø16 mm safety pins. Quick release fixing system with 2 hooks. 2 upper barbel holders for squat training. COD.PANCA-LDX3-5 BENCH: dimensions 1346x666x857 mm (flat position). Backrest dimensions 1230x300x50mm. Regolazione inclinazione su 3 livelli. Saddle dimensions 187x200x50mm. Removable saddle. 4 modes of use: flat bench, abdominal bench, inclined bench and declined bench. Quick release fixing system with 2 hooks. Roller ankle cushions included.;
Frame
Frame	Uprights structure: reinforced steel oval tube 80x40x2mm
Weight
Weight	28,5 kg
Set up size
Set up size	1208 x 518 x 2330 mm
Gross weight
Gross weight	32 kg
Packing size
Packing size	2340 x 240 x 150 + 1230 x 420 x 100 mm
Compliances
Compliances	EN20957-1 / EN957-4 class S
EAN
EAN	8029975805702
